Harting Surface mounted housing, double locking, side entry, 10B

Product Overview

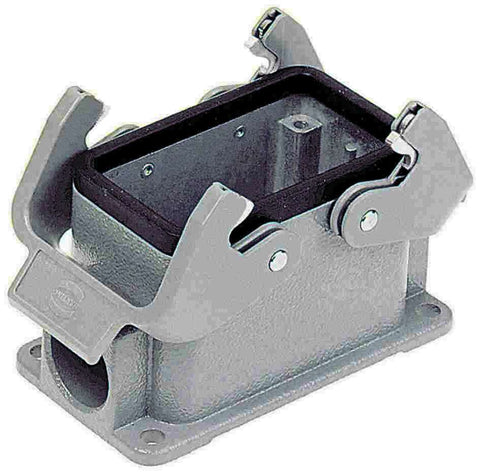

The Han B Base Surface LC 2 Levers 1 Entry P (SKU: 09300101231) is a low-construction surface-mount base housing designed for industrial connector applications. This base features dual locking levers and a single cable entry point with PG thread, providing a compact and secure mounting solution for Han® B series connector systems.

Key Features:

• Low Construction (LC): Space-saving design for applications with height constraints
• Dual Locking Levers: Two-lever locking mechanism for enhanced connection security
• Surface Mount Design: Direct mounting to panels or equipment surfaces
• Single Entry Point: One cable entry with PG thread configuration
• Material: High-quality thermoplastic construction
• UL 94 V-0 Rating: Fire-resistant locking lever material for safety compliance

Technical Specifications:

• Article Number: 09 30 010 1231
• Category: Hoods/Housings
• Series: Han® B
• Type: Base housing, surface mount
• Construction: Low construction (LC)
• Locking System: 2 levers
• Cable Entries: 1 entry with PG thread
• Material Flammability Class: V-0 (acc. to UL 94 for locking levers)
• Certifications: CSA-C22.2 No. 182.3 ECBT8.E235076

Design Features:

• Compact Profile: LC (Low Construction) design minimizes overall height
• Secure Locking: Dual lever system provides reliable mechanical connection
• Single Cable Management: Optimized for single cable entry applications
• Surface Mounting: Direct attachment to equipment panels or housings
• PG Threading: Standard PG thread size for cable gland compatibility

Applications: Ideal for industrial automation, machinery control panels, and equipment where space constraints require a low-profile connector solution. The surface mount design with dual locking levers makes it suitable for applications requiring secure connections in compact installations.

Compatibility: Compatible with Han® B series inserts and mating connectors. The single PG entry design accommodates standard cable glands and cord grips for secure cable management.

Installation Notes:

• Designed for surface mounting applications
• Requires appropriate Han B series inserts (sold separately)
• PG cable entry accepts standard cable glands
• Dual locking levers provide enhanced connection security
• Low construction design suitable for space-constrained applications
