Harting Surface housing, single locking, top entry, M20

Product Overview

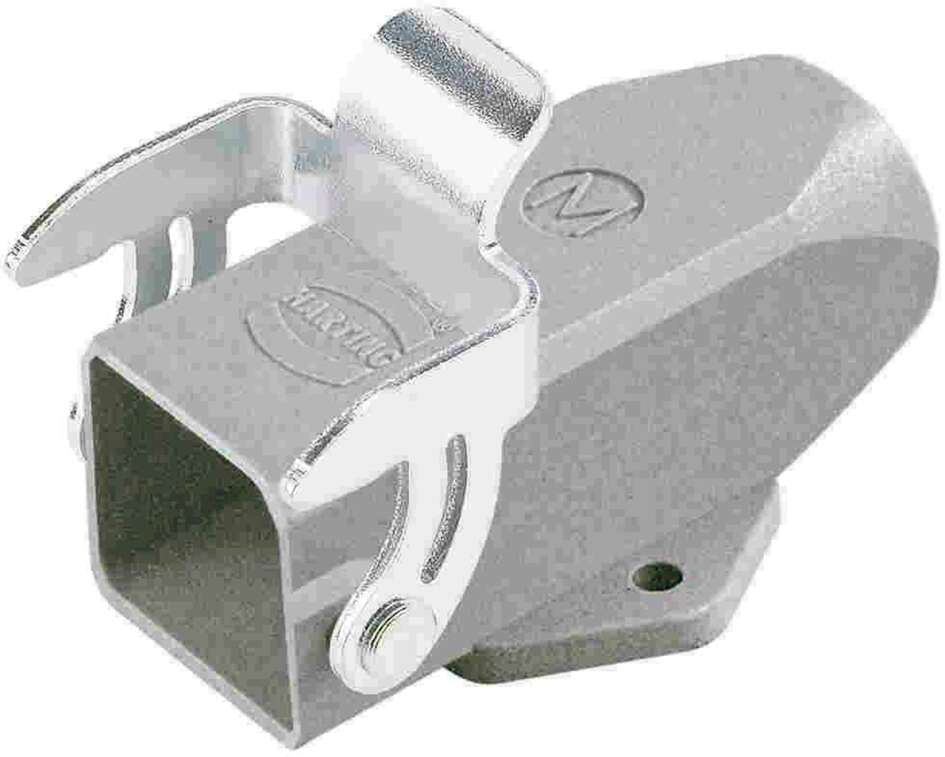

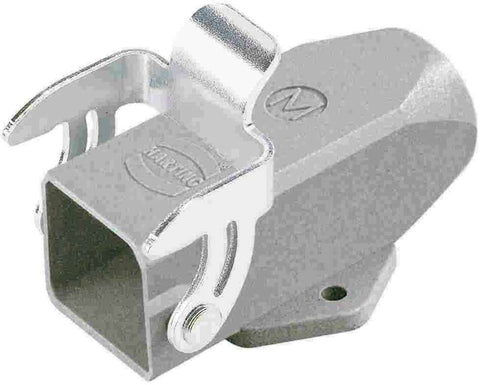

The Han 3A-HSM angled-L-M20 (article no. 19 20 003 1250) is an angled surface-mounted housing from Harting's Han A series. Features robust construction with single locking lever mechanism, angled cable entry configuration, and M20 thread connection for applications requiring space-efficient mounting with angled cable routing in industrial automation systems.

Key Features:

• HSM (Housing Surface Mounted) design for panel mounting
• Han A series 3A size for compact applications
• Angled configuration for space-efficient cable routing
• Single locking lever (L) for secure connection
• M20 cable thread entry
• Operating temperature range: -40°C to +125°C
• IP44 standard protection (IP67 with seal screw)
• Dust grey finish for professional appearance

Applications:

Industrial control panels with space constraints, machinery installations requiring angled connections, automation equipment, process control systems, panel-mounted applications, manufacturing equipment, confined space installations, applications requiring optimized cable routing.

Technical Specifications:

• Category: Hoods/Housings
• Series: Han A
• Size: 3A
• Housing Type: HSM (Housing Surface Mounted) angled
• Cable Entry: M20 thread, angled configuration
• Locking Mechanism: Single lever (L)
• Operating Temperature: -40°C to +125°C
• Protection Rating: IP44 standard (IP67 with seal screw)
• Insert Compatibility: Han A series inserts
• Mounting: Surface mounted design
• Finish: Dust grey

Design Features

The HSM (Housing Surface Mounted) design provides secure panel mounting capabilities, while the angled configuration optimizes cable routing in space-constrained installations. The single lever locking mechanism ensures reliable connection with easy field operation, ideal for maintenance accessibility in confined spaces.

System Benefits:

• Angled design optimizes cable routing in tight spaces
• Surface-mounted configuration simplifies panel installation
• Single lever operation reduces connection/disconnection time
• Compact 3A size maximizes space utilization
• Wide temperature range suits demanding environments
• Professional finish enhances equipment aesthetics

Standards:

• Industrial connector housing standards
• Han A series compatibility specifications
• IP protection rating standards (IEC 60529)
• Surface mounting connector requirements
• High-temperature application standards

Compliance:

• Harting Han A series specifications
• Industrial automation standards
• Environmental protection requirements
• High-temperature operation standards
• Panel mounting connector specifications
