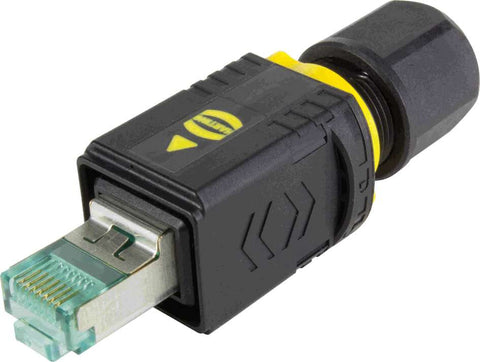

Harting Connector, pushpull V4 plug, RJ45, Cat.6A Part number 09451451521

Product Overview

The PushPull V4 Plug RJ45 Cat6A is a high-performance industrial Ethernet connector designed for demanding 10 Gigabit networking applications requiring rapid connection and disconnection capabilities. Features innovative PushPull locking mechanism with piercing contact technology for quick field assembly. Part of the HARTING PushPull V4 series with RJ45 specification, providing robust high-speed connectivity for industrial applications where fast connection, environmental protection, and Cat6A performance are critical.

Key Features

• RJ45 connector with Cat6A transmission performance
• PushPull locking mechanism for rapid connection/disconnection
• Piercing contact termination for field assembly
• Complete connector set with housing, shielding, and cable gland
• Industrial-grade construction for harsh environments
• Fully shielded with 360° shielding contact
• Cat6A Class EA performance up to 500 MHz
• Temperature range: -40°C to +70°C
• Cable diameter range: 4.9-8.6 mm

Technical Specifications

• Connector Type: RJ45 plug connector
• Performance Category: Cat6A Class EA up to 500 MHz
• Number of Contacts: 8 contacts
• Configuration: Straight plug
• Termination Method: Piercing contacts
• Wire Compatibility: AWG 24-28 (stranded), 0.08-0.22 mm²
• Cable Diameter: 4.9-8.6 mm
• Temperature Range: -40°C to +70°C
• IP Protection: IP65/IP67
• Data Rate: 10 Gbps capability
• Series: HARTING PushPull (V4)
• Element Type: Connector sets
• Locking Type: PushPull mechanism

Installation Details

• Piercing contact technology for rapid field termination
• PushPull mechanism enables quick connection/disconnection
• Complete connector set includes all necessary components
• Field-assembly design for installation flexibility
• 360° shielding contact for optimal EMI protection

Applications

• Industrial automation requiring frequent connections
• Mobile equipment with regular connector engagement
• High-speed data networks in manufacturing
• Process control systems requiring quick maintenance
• Temporary network connections in industrial environments
• Equipment requiring rapid reconfiguration
• Industrial Ethernet applications with 10G requirements

Compatibility

• Compatible with standard RJ45 Ethernet infrastructure
• Designed for Cat6A network cable specifications
• Suitable for industrial Ethernet protocols
• Compatible with HARTING PushPull V4 system components
• Successor to previous HPP V4 RJ45 GL Cat6A models

Environmental Protection

• IP65/IP67: Dust-tight and water protection
• Temperature Range: -40°C to +70°C operational
• Shielding: Fully shielded with 360° contact
• Industrial Design: Robust construction for harsh environments
• Material: Thermoplastic housing with UL94 V-0 rating
• Vibration Resistant: Secure PushPull connection mechanism

Important Configuration

• Complete connector set includes housing, RJ45 connector, and cable gland
• Cable diameter must be within 4.9-8.6 mm range
• Piercing contacts require proper cable preparation
• PushPull mechanism requires adequate access space
• Performance depends on proper shielding installation

Performance Characteristics

• Category: Cat6A Class EA transmission performance
• Frequency Range: Up to 500 MHz
• Data Rate: 10 Gbps Ethernet capability
• Connector Standard: RJ45 compatible
• Transmission Quality: Industrial-grade signal integrity
• Shielding: 360° EMI protection for reliable operation

Wire Specifications

• Stranded Wire: AWG 24-28 (0.08-0.22 mm²)
• Cable Diameter: 4.9-8.6 mm
• Termination: Piercing contacts (no stripping required)
• Contact Material: Industrial-grade for high-speed connection
• Conductor Configuration: 8-contact for full Ethernet connectivity

Locking Mechanism

• Type: PushPull engagement system
• Operation: Push to connect, pull to disconnect
• Advantages: Rapid connection/disconnection capability
• Security: Positive engagement prevents accidental disconnection
• Durability: Designed for frequent mating cycles

Certifications and Compliance

• Standards: RJ45 connector standard
• Performance: Cat6A Class EA up to 500 MHz
• CSA Certification: CSA-C22.2 No. 182.3
• IP Protection: IP65/IP67 per IEC 60529
• Material Flammability: UL94 V-0
• Industrial Standards: Designed for industrial environments
• Temperature Rating: -40°C to +70°C
• RoHS: Compliant
• Country of Origin: Germany

Environmental Compliance

• RoHS compliant design
• UL94 V-0 flame retardancy rating
• Industrial-grade materials and construction
• Designed for harsh environmental conditions
• Long-term reliability in demanding applications
