Harting Side entry connector hood, heavy duty, 3A

Product Overview

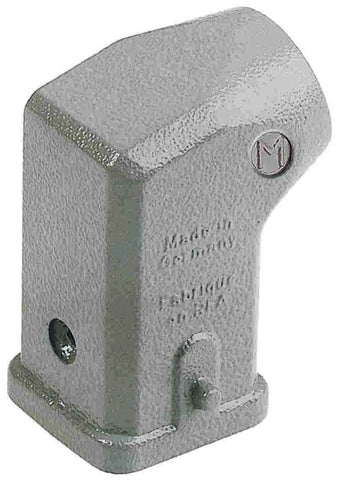

The Han A Hood Angled Entry 2 Pegs M20 is an industrial connector hood designed for space-constrained applications requiring angled cable routing. Features zinc die-cast construction with single locking lever mechanism and dual peg mounting system. Part of the Han A® series with size 3A configuration, specifically engineered for angled cable entry to optimize installation flexibility in confined spaces.

Key Features

• Angled entry design for space-optimized cable routing
• Single locking lever for secure connection
• Size 3A with M20 angled cable gland
• Dual peg mounting system for enhanced stability
• Zinc die-cast construction for durability
• Side entry configuration with angled profile
• Temperature range: -40°C to +125°C
• IP44/IP67 protection ratings
• Compatible with standard industrial applications

Technical Specifications

• Housing Size: 3A
• Cable Entry: Angled/Side entry, 1x M20
• Mounting: 2 pegs for secure positioning
• Temperature Range: -40°C to +125°C
• Material: Zinc die-cast construction
• Protection: IP44 standard, IP67 with seal screw
• UL Rating: Type 12 (UL 50/UL 50E)
• Locking: Single locking lever
• Series: Han A®
• Standards: IEC 61984, IEC 60529

Installation Details

• Angled entry design optimizes cable routing in confined spaces
• Dual peg system provides accurate positioning and stability
• M20 cable gland with side entry configuration
• Compatible with standard Han 3A mounting systems
• Requires seal screw for enhanced IP protection

Applications

• Industrial installations with space constraints
• Control systems requiring angled cable management
• Automation equipment in confined environments
• Manufacturing systems with angular cable routing needs
• Applications where straight cable entry is not feasible

Compatibility

• Compatible with Han A® series inserts
• Works with Han A®, D®, and Q series components
• Part of comprehensive Han A® connector system
• Suitable for various industrial insert configurations
• Enhanced mounting stability with dual peg design

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP44 standard, IP67 with seal screw
• UL Rating: Type 12 protection
• Construction: Durable zinc die-cast housing

Certifications and Compliance

• Standards: IEC 61984, IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Origin: Germany
• Quality: HARTING manufacturing standards
