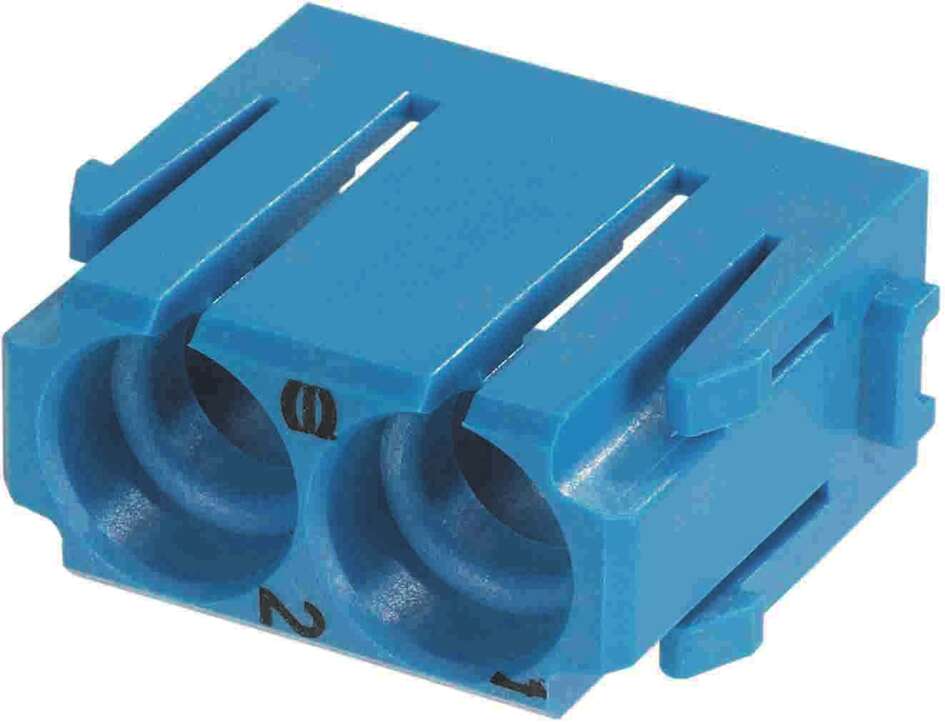

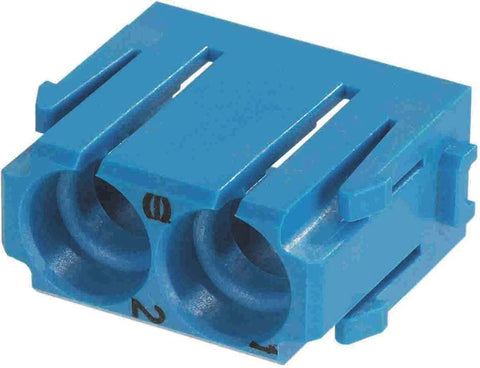

Harting Pneumatic module, male, female, 2 contacts, blue

Product Overview

The Han Pneumatic module, for 6mm contacts is a specialized compressed air transmission module designed for the HARTING Han-Modular® connector system. This single-module insert accommodates both male and female 6mm pneumatic contacts and enables the transmission of properly prepared compressed air through connectors alongside electrical power and data signals in a single assembly. The module features distinctive blue polycarbonate construction for easy visual identification and is engineered to provide reliable pneumatic connections with 6mm contact compatibility.

Key Features

• Series: Han-Modular®
• Category: Pneumatic Transmission Module
• Type: Han® Pneumatic module
• Module Size: Single module
• Gender: Male, Female (dual configuration)
• Contacts: 2
• Contact Size: 6mm contacts
• Operating Pressure: 8 bar (116 PSI)
• Operating Temperature: -40°C to +80°C
• Material: Polycarbonate (PC)
• Color: Blue (for pneumatic identification)
• Contact Type: 6mm pneumatic contacts
• Application: Compressed air transmission

Technical Specifications

This pneumatic module provides reliable compressed air transmission capabilities with an operating pressure of 8 bar (116 PSI) and operating temperature range from -40°C to +80°C. The single-module design accommodates 2 contacts specifically designed for 6mm pneumatic connections, supporting both male and female configurations. The contact pins and sockets can be used with pneumatic hoses of varying diameters, depending on application requirements. The distinctive blue polycarbonate construction ensures easy visual identification and differentiation from electrical modules within the Han-Modular® system. The module enables users to route compressed air feed through the same connector along with power and signal lines, eliminating the need for separate compressed air connections and creating space-saving opportunities in industrial applications.

Compliance & Environmental

• Industrial-grade polycarbonate construction
• Operating pressure: 8 bar (116 PSI)
• Operating temperature: -40°C to +80°C
• Han-Modular® system compatibility
• Blue color coding for pneumatic identification
• 6mm contact specification
• Suitable for harsh industrial environments
• Dual male/female configuration capability

Applications

Ideal for industrial automation systems, manufacturing equipment, and machinery requiring reliable 6mm pneumatic connections alongside electrical connections. Perfect for applications involving compressed air systems, pneumatic actuators, control units, and automation equipment where 6mm pneumatic contact compatibility is essential. Excellent for flexible production processes, robotics, and industrial systems where consolidated connectivity combining pneumatic, power, and signal transmission in a single connector assembly is required. The module is particularly suitable for applications requiring space-saving solutions that reduce installation complexity and maintenance requirements while providing reliable 6mm pneumatic connection capabilities.
