Harting Insert, crimp, female, pebble grey, 40A

Product Overview

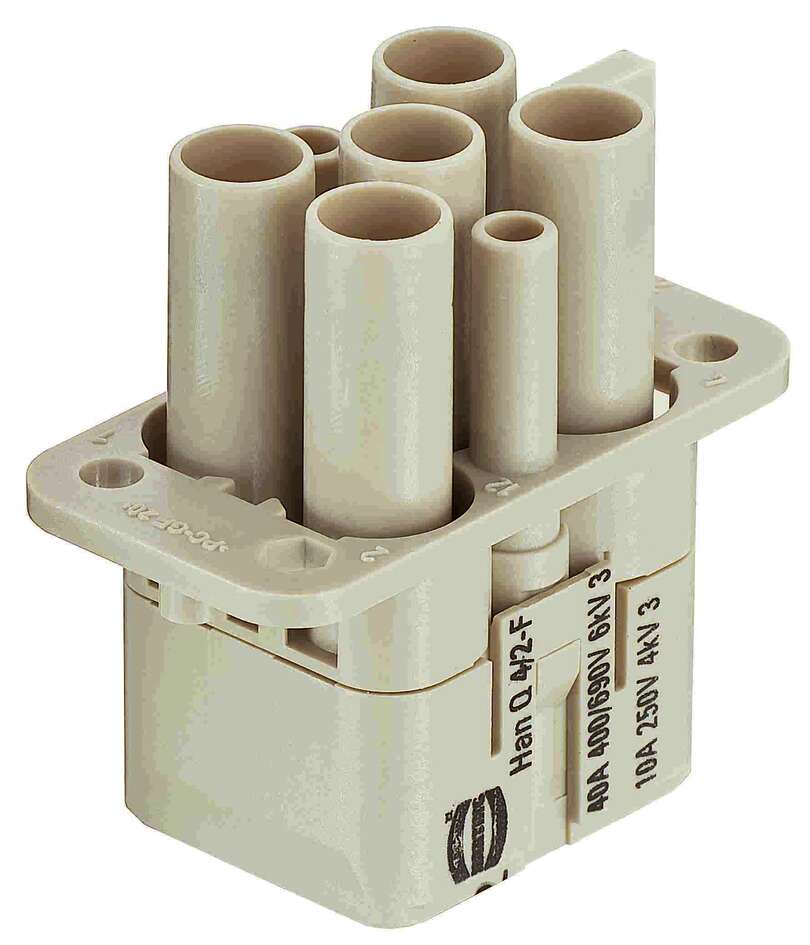

The Han Q 4/2 F-c is a high-performance female connector insert designed for the HARTING Han® Q series with crimp termination and finger safe contact protection. This compact insert features 4 power contacts plus 2 signal contacts with protective earth (PE), optimized for industrial applications requiring reliable female electrical connections with enhanced safety features and superior mechanical retention.

Key Features

• Series: Han® Q
• Identification: 4/2 (4 power + 2 signal contacts)
• Gender: Female
• Termination Method: Crimp (c)
• Total Contacts: 6 (4 power + 2 signal + PE)
• Features: Finger safe contacts
• Rated Current (Power): 40 A
• Rated Current (Signal): 10 A
• Rated Voltage (Power - UL/CSA): 600 V
• Rated Voltage (Signal - UL/CSA): 250 V
• Power Voltage: 400V/690V
• Operating Temperature: -40°C to +125°C
• Flammability Rating: UL 94 V-0
• Certification: CSA-C22.2 No. 182.3

Technical Specifications

This female insert is part of the Han® Q series, featuring crimp termination with finger safe contact protection for enhanced operator safety. The insert provides 4 power contacts rated at 40A for 400V/690V applications and 2 signal contacts rated at 10A for 250V control circuits. The crimp connection method provides superior mechanical retention and electrical performance compared to other termination methods. Operating reliably across a wide temperature range from -40°C to +125°C, this insert meets UL 94 V-0 flammability standards and CSA certifications for industrial applications. Note: Crimp contacts must be ordered separately.

Compliance & Environmental

• UL 94 V-0 flammability rating
• CSA-C22.2 No. 182.3 certified
• UL and CSA voltage ratings: 600V (power), 250V (signal)
• Wide operating temperature range: -40°C to +125°C
• Finger safe contact protection
• Industrial-grade construction

Applications

Ideal for industrial applications requiring secure female crimp connections with both power and signal capabilities, enhanced by finger safe contact protection. Perfect for heavy-duty power and control applications in manufacturing, automation equipment, and industrial machinery where operator safety and reliable female electrical connections are critical. The crimp termination method combined with finger safe features makes it suitable for high-vibration environments and applications requiring long-term reliability with enhanced safety standards.
