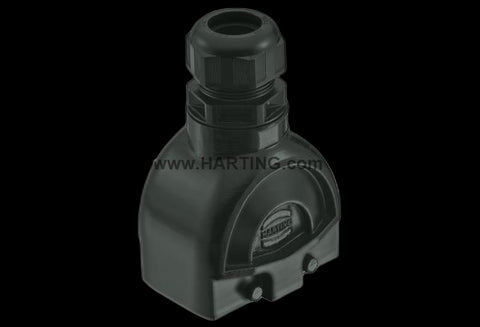

Harting Hood, top entry M32, double locking lever, size 10B

Product Overview

The Han-Eco Mod.10-HTE-M32-glanded is a Hood Top Entry connector from the Han-Eco series for industrial applications requiring cost-effective solutions with integrated cable gland and top entry configuration. Features polyamide construction with fiber-glass reinforcement and double locking lever mechanism with integrated M32 cable gland for reliable electrical connections in demanding industrial environments with lightweight design.

Key Features

• Han-Eco series hood with Hood Top Entry (HTE) configuration
• Integrated M32 cable gland for complete solution
• Size 10B with double locking lever mechanism
• Polyamide (PA) construction with fiber-glass reinforcement
• Top entry design for vertical cable routing
• Cost-effective lightweight construction with RAL 9005 (jet black) finish

Technical Specifications

• Series: Han-Eco®
• Housing Size: 10B
• Construction: Hood with integrated cable gland
• Cable Entry: Top entry, 1 x M32 (integrated gland)
• Locking System: Double locking lever
• Temperature Range: -40°C to +125°C
• Protection: IP65 according to IEC 60529
• Material: Polyamide (PA), fiber-glass reinforced
• Surface Finish: RAL 9005 (jet black)
• Standards: IEC 60529, CSA-C22.2 No. 182.3 ECBT8.E235076

Installation Details

• Integrated M32 cable gland eliminates need for separate gland
• Top entry configuration for vertical cable routing and access
• Double locking lever system ensures secure mechanical connection
• Lightweight polyamide construction for easy handling

Applications

• Industrial automation systems requiring cost-effective top entry solutions
• Machinery and equipment needing lightweight connector housings
• Control systems with vertical cable routing requirements
• Applications demanding integrated cable gland solutions with cost optimization

Compatibility

• Compatible with Han-Eco Modular connector system
• Part of Han-Eco® series
• Designed for cost-effective industrial applications
• Lightweight alternative to metal housings

Environmental Protection

• Temperature: -40°C to +125°C operational range
• Protection: IP65 rating against dust and water ingress
• Construction: Fiber-glass reinforced polyamide for durability
• Flammability: V-0 rating according to UL 94

Certifications and Compliance

• Standards: IEC 60529, CSA-C22.2 No. 182.3 ECBT8.E235076
• Flammability: V-0 according to UL 94 (housing and locking levers)
• Performance: Enhanced reliability for industrial applications
• Origin: Germany
