Harting Hood, single locking, top entry, M20, size 3A

Product Overview

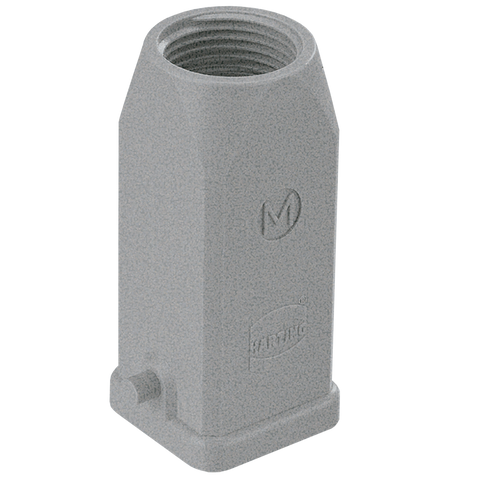

The Han A Hood Top Entry 2 Pegs M20 is an industrial connector hood designed for standard cable management applications. Features zinc die-cast construction with RAL 7037 powder-coated finish and single locking lever mechanism. Part of the Han A® series with size 3A configuration, designed for top entry cable routing with M20 cable gland and dual peg mounting system.

Key Features

• Single locking lever for secure connection
• Size 3A with M20 top entry cable gland
• Dual peg mounting system for enhanced stability
• Zinc die-cast construction, RAL 7037 (dust grey) finish
• Temperature range: -40°C to +125°C
• IP44 standard, IP65/IP67 protection with seal screw
• Compatible with standard industrial applications

Technical Specifications

• Housing Size: 3A
• Construction: Standard height
• Cable Entry: Top entry, 1x M20
• Mounting: 2 pegs for secure positioning
• Temperature Range: -40°C to +125°C
• Material: Zinc die-cast, powder-coated RAL 7037
• Protection: IP44 standard, IP65/IP67 with seal screw
• UL Rating: Type 12 (UL 50/UL 50E)
• Locking: Single locking lever
• Series: Han A®
• Standards: IEC 61984, IEC 60529

Installation Details

• Dual peg system provides accurate positioning and stability
• M20 cable gland for standard cable management
• Requires seal screw (09 20 000 9918) for IP65/IP67 protection
• Compatible with standard Han 3A mounting configurations

Applications

• Standard industrial connector applications
• Control systems requiring reliable cable management
• Automation equipment in industrial environments
• Manufacturing equipment connections
• Process and regulation control applications

Compatibility

• Compatible with Han A® series inserts
• Works with Han A®, D®, and Q series components
• Part of comprehensive Han A® connector system
• Requires seal screw for enhanced environmental protection

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP44 standard, IP65/IP67 with seal screw
• UL Rating: Type 12 protection
• Construction: Corrosion-resistant powder coating

Certifications and Compliance

• Standards: IEC 61984, IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant, ELV compliant
• Regional: China RoHS compliant
• Origin: Germany
• Quality: HARTING manufacturing standards

Download existing graphical data for this product:

• Product Datasheet
• Product Data
• EPLAN Data Portal
