Harting Hood, single locking, side entry, PG16, size 10A

Product Overview

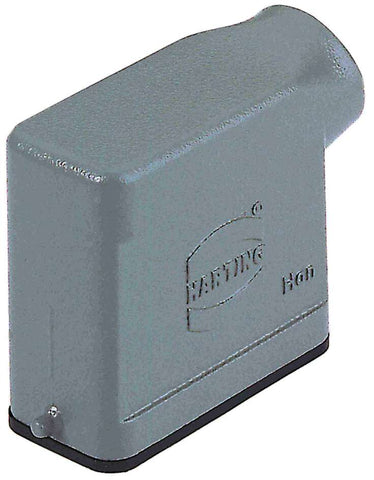

The Han 10A-gs-16 (Article No.: 09 20 010 1541) is a hood from HARTING's Han A® series featuring low construction design with side entry configuration. This size 10A hood provides lateral cable outlet through PG16 cable gland with single locking lever for industrial connector applications.

Key Features:

• Han A® series hood, size 10A with low construction
• Side entry configuration with lateral cable outlet
• Single locking lever for secure connection
• PG16 cable gland with 8.0-14.0 mm clamping range
• Aluminium die-cast construction with powder coating
• IP65 protection rating with NBR seal

Technical Specifications:

• Article Number: 09 20 010 1541
• Category: Hoods/Housings
• Series: Han A®, Size 10A
• Type: Hood (side entry)
• Construction: Low construction
• Locking: Single locking lever
• Entry Configuration: Side entry (lateral)
• Cable Entry: 1x PG16
• Cable Exit Angle: 90°
• Clamping Range: 8.0 - 14.0 mm
• Material: Aluminium die-cast
• Finish: Powder-coated
• Color: RAL 7037 (dust grey)
• Seal Material: NBR (nitrile rubber)
• Protection Rating: IP65
• Operating Temperature: -40°C to +125°C
• Weight: 91.6g

Applications: Designed for industrial applications requiring side cable entry solutions for Han A® connector systems. Ideal for automation equipment, control systems, and industrial machinery where lateral cable routing and low profile construction are advantageous for space-constrained installations.

Benefits:

• Side entry design allows convenient lateral cable routing
• Low construction profile minimizes vertical space requirements
• Single locking lever provides secure and easy connection/disconnection
• IP65 protection ensures reliability in demanding industrial environments
• Aluminium die-cast construction ensures durability and corrosion resistance
• Wide operating temperature range (-40°C to +125°C) for extreme conditions
• Compatible with Han A®, Han D®, and Han Modular series inserts

Compatibility: Compatible with Han A®, D®, and Modular series inserts. For Modular series applications, only one insert module can be accommodated within this size 10A housing. Works with Han 10A inserts and bases for flexible system integration.
