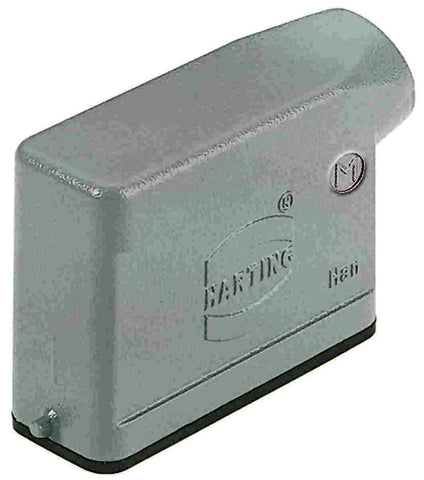

Harting Hood, single locking, side entry, M20, size 16A

Product Overview

The Han A Hood Side Entry LC 2 Pegs M20 is a low construction connector hood designed for space-constrained industrial applications requiring lateral cable routing with minimal height profile. Features aluminum die-cast construction with single locking lever mechanism and dual peg mounting system. Part of the Han A® series with size 16A configuration, specifically engineered with low construction (LC) design for installations with limited vertical clearance while maintaining side entry M20 cable gland and enhanced internal capacity.

Key Features

• Low construction design for minimal height profile
• Side entry configuration for lateral cable routing
• Single locking lever for secure engagement
• Size 16A with M20 side cable entry
• Dual peg mounting system for enhanced stability
• Aluminum die-cast construction, RAL 7037 (dust grey) finish
• Temperature range: -40°C to +125°C
• IP65 protection rating
• Enhanced internal capacity with space-efficient design

Technical Specifications

• Housing Size: 16A
• Construction: Low construction (LC)
• Cable Entry: Side entry, 1x M20
• Mounting: 2 pegs for secure positioning
• Temperature Range: -40°C to +125°C
• Material: Aluminum die-cast, powder-coated RAL 7037
• Protection: IP65 protection rating
• UL Rating: NEMA 4/4X/12 (UL 50/UL 50E)
• Locking: Single locking lever with Han-Easy Lock®
• Series: Han A®
• Standards: IEC 60529, IEC 61984, UL 50/UL 50E

Installation Details

• Low construction minimizes vertical space requirements
• Side entry design optimizes lateral cable routing
• Dual peg system ensures accurate positioning and mounting stability
• M20 cable gland for standard cable management
• Single lever provides secure engagement with reduced height profile

Applications

• Industrial installations with height restrictions requiring side cable routing
• Control systems needing lateral cable management with minimal clearance
• Automation equipment in confined vertical spaces with side access
• Manufacturing systems where low profile with side entry is essential
• Applications requiring enhanced internal capacity with space constraints
• Equipment installations where both side entry and low height are critical

Compatibility

• Compatible with Han 16A series inserts
• Works with various Han A® insert configurations
• Part of comprehensive Han A® connector system
• Enhanced mounting stability with dual peg design
• Suitable for applications requiring low construction benefits
• Accommodates larger internal capacity than smaller Han A sizes

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• UL Rating: NEMA 4/4X/12 protection standards
• Construction: Corrosion-resistant aluminum die-cast with powder coating

Certifications and Compliance

• Standards: IEC 60529, IEC 61984, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
• Quality: HARTING manufacturing standards
