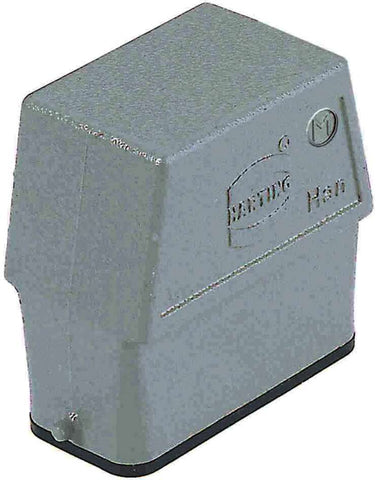

Harting Hood, single locking, side entry, 1x M25, size 10A.

Product Overview

The Han A Hood Side Entry HC 2 Pegs M25 is a high construction connector hood designed for industrial applications requiring lateral cable routing and enhanced internal space. Features aluminum die-cast construction with single locking lever mechanism and dual peg mounting system. Part of the Han A® series with size 10A configuration, specifically engineered with high construction (HC) design for increased internal volume and side entry M25 cable gland.

Key Features

• High construction design for enhanced internal capacity
• Side entry configuration for lateral cable routing
• Single locking lever for secure engagement
• Size 10A with M25 side cable entry
• Dual peg mounting system for enhanced stability
• Aluminum die-cast construction, RAL 7037 (dust grey) finish
• Temperature range: -40°C to +125°C
• IP65 protection rating

Technical Specifications

• Housing Size: 10A
• Construction: High construction (HC)
• Cable Entry: Side entry, 1x M25
• Mounting: 2 pegs for secure positioning
• Temperature Range: -40°C to +125°C
• Material: Aluminum die-cast, powder-coated RAL 7037
• Protection: IP65 protection rating
• UL Rating: NEMA 4/4X/12 (UL 50/UL 50E)
• Locking: Single locking lever
• Series: Han A®
• Standards: IEC 60529, UL 50/UL 50E

Installation Details

• High construction provides increased internal space for larger assemblies
• Side entry design optimizes lateral cable routing
• Dual peg system ensures accurate positioning and mounting stability
• M25 cable gland accommodates enhanced cable diameter capacity
• Single lever provides secure engagement with Han-Easy Lock® system

Applications

• Industrial machinery requiring side cable routing
• Control systems with space constraints requiring high construction
• Automation equipment needing lateral cable management
• Manufacturing systems where top entry is not feasible
• Applications requiring enhanced internal volume for complex wiring
• Equipment installations where cable direction must be optimized

Compatibility

• Compatible with Han 10A series inserts
• Works with various Han A® insert configurations
• Part of comprehensive Han A® connector system
• Enhanced mounting stability with dual peg design
• Suitable for applications requiring high construction benefits

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• UL Rating: NEMA 4/4X/12 protection standards
• Construction: Corrosion-resistant aluminum die-cast with powder coating

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
• Quality: HARTING manufacturing standards
