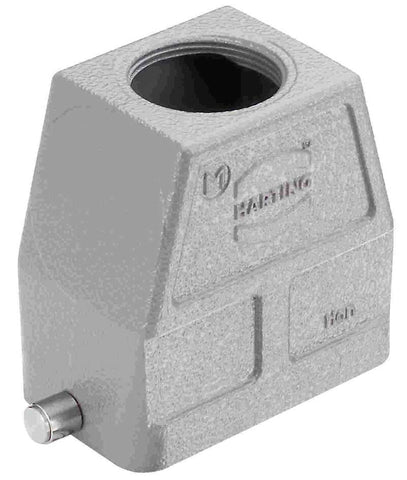

Harting Hood, single locking lever, top entry, M32, size 10B

Product Overview

The Han 10B-HMC-gg-R-M32 is a high-performance connector hood from the HMC (High Mating Cycles) series for industrial applications requiring frequent connection/disconnection operations with top cable entry. Features aluminum die-cast construction with single locking lever mechanism and top entry M32 cable gland for reliable electrical connections in demanding industrial environments with enhanced durability and extended cycle life.

Key Features

• HMC series hood designed for high mating cycles (≥10,000 cycles)
• Top cable entry with high construction design
• Size 10B with single M32 cable entry
• Aluminum die-cast construction, RAL 7037 finish
• Single locking lever mechanism for quick connections
• IP65 protection, suitable for harsh industrial environments

Technical Specifications

• Housing Size: 10B
• Construction: High construction HMC series hood
• Cable Entry: Top entry (straight), 1 x M32
• Locking System: Single locking lever (Längsbügel)
• Temperature Range: -40°C to +125°C
• Protection: IP65, UL 50/UL 50E type rating
• Material: Aluminum die-cast, powder-coated RAL 7037
• Mating Cycles: ≥10,000 cycles with other HMC components
• Standards: IEC 60529, UL 50/UL 50E

Installation Details

• High construction design provides enhanced internal volume
• Single locking lever provides quick and secure mechanical connection
• Top entry configuration for vertical cable routing and access
• Extended mating cycle capability for high-frequency applications

Applications

• Industrial automation systems requiring frequent connector operation
• Machinery and equipment with high connection/disconnection frequency
• Control systems needing extended cycle life with top cable entry
• Applications demanding reliable high-frequency mating operations

Compatibility

• Compatible with Han 10B HMC series bases and inserts
• Part of Han® HMC connector system
• High mating cycle hood for frequent operation applications

Environmental Protection

• Protection: IP65 rating against dust and water ingress
• Construction: Corrosion-resistant aluminum die-cast housing
• Temperature: -40°C to +125°C operational range
• Durability: ≥10,000 mating cycles with HMC components

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Certifications: CSA-C22.2 No. 182.3 ECBT8.E235076
• Flammability: V-0 according to UL 94 (locking levers)
• Origin: Germany
