Harting Hood, single locking lever, side entry, size 6B

Product Overview

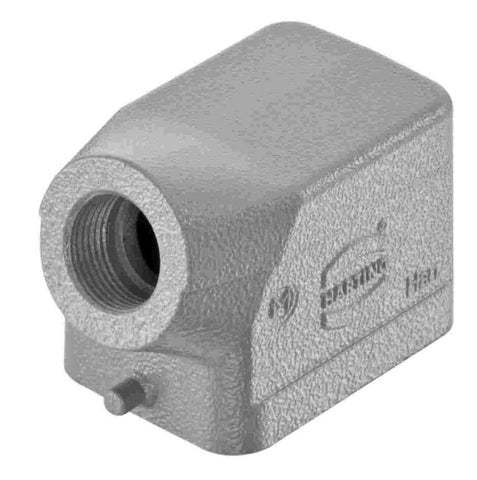

The Han B Hood Side Entry LC 2 Pegs M25 is a low construction connector hood for industrial applications requiring lateral cable routing with larger cable capacity. Features aluminum die-cast construction with dual peg mounting and M25 cable gland for enhanced cable management in space-constrained installations.

Key Features

• Low construction design for minimal height profile
• Side entry with M25 cable gland for larger cables
• Dual peg mounting system for stability
• Size 6B aluminum die-cast construction, RAL 7037 finish
• Single locking lever with Han-Easy Lock®
• IP65 protection, -40°C to +125°C operation

Technical Specifications

• Housing Size: 6B
• Cable Entry: Side entry, 1 x M25
• Temperature Range: -40°C to +125°C
• Protection: IP65, NEMA 4/4X/12
• Material: Aluminum die-cast, powder-coated RAL 7037
• Locking: Single lever, polycarbonate and stainless steel
• Mating Cycles: ≥500 cycles
• Standards: IEC 60529, UL 50/UL 50E

Installation Details

• Dual peg system for accurate positioning
• 90° cable exit angle for lateral routing
• M25 gland accommodates larger cable diameters
• Compatible with Han 6B series bases and inserts

Applications

• Industrial installations requiring larger cable capacity
• Control systems with heavy-duty cable requirements
• Applications needing side entry with enhanced cable management
• Equipment requiring low profile with M25 cable accommodation

Compatibility

• Compatible with Han 6B series inserts and bases
• Part of Han B® connector system
• Suitable for larger cable diameter applications

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• Construction: Corrosion-resistant aluminum die-cast
• Durability: ≥500 mating cycles

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
