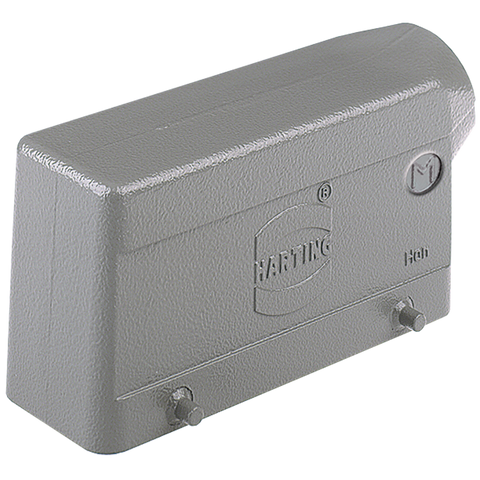

Harting Hood, side entry, M25, double locking, size 24B

Product Overview

The Han B Hood Side Entry LC 4 Pegs M25 is a low construction connector hood for industrial applications requiring lateral cable routing with secure four-peg mounting. Features aluminum die-cast construction with double locking lever mechanism and side entry M25 cable gland for reliable electrical connections in demanding industrial environments with enhanced mechanical stability and lateral access.

Key Features

• Side entry hood with low construction (LC) design
• Four-peg mounting configuration for secure attachment
• Size 24B with single M25 side cable entry
• Aluminum die-cast construction, RAL 7037 finish
• Double locking lever mechanism for secure connections
• IP65 protection, suitable for industrial environments

Technical Specifications

• Housing Size: 24B
• Construction: Low construction (LC) side entry hood
• Cable Entry: Side entry, 1 x M25
• Mounting: 4-peg configuration
• Locking System: Double locking lever
• Temperature Range: Industrial operating range per IEC 61984
• Protection: IP65, UL 50/UL 50E type rating
• Material: Aluminum die-cast, powder-coated RAL 7037
• Mating Cycles: High-cycle industrial rating
• Standards: IEC 60529, IEC 61984, UL 50/UL 50E

Installation Details

• Four-peg mounting system provides secure mechanical attachment
• Low construction design minimizes profile height
• Side entry configuration for lateral cable routing and access
• Double locking lever system ensures secure mechanical connection

Applications

• Industrial automation and control systems requiring side-entry hoods
• Machinery and equipment with lateral cable routing requirements
• Control panels needing secure four-peg mounted connections
• Applications demanding reliable side-access cable management

Compatibility

• Compatible with Han 24B series bases and inserts
• Part of Han B® connector system
• Side entry hood with four-peg mounting design

Environmental Protection

• Protection: IP65 rating against dust and water ingress
• Construction: Corrosion-resistant aluminum die-cast housing
• Durability: Industrial-grade construction for harsh environments
• Surface Finish: Powder-coated RAL 7037 (dust grey)

Certifications and Compliance

• Standards: IEC 60529, IEC 61984, UL 50/UL 50E
• Certifications: CSA-C22.2 No. 182.3 ECBT8.E235076
• Flammability: V-0 according to UL 94 (locking levers)
• Origin: Germany
