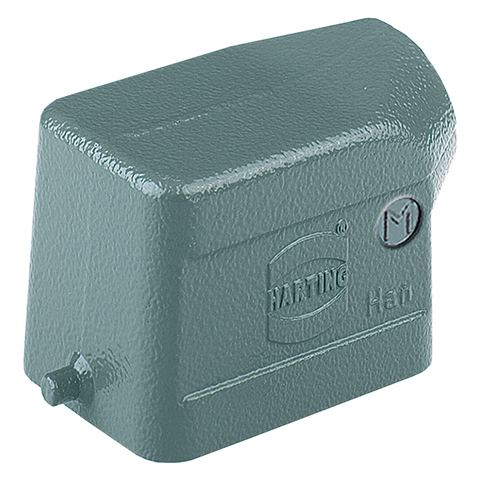

Harting Hood, side entry, M20, single locking, size 6B Part number 19300061540

Product Overview

The Han B Hood Side Entry LC 2 Pegs M20 is a low construction connector hood designed for space-constrained industrial applications requiring lateral cable routing with minimal height profile. Features aluminum die-cast construction with single locking lever mechanism and dual peg mounting system. Part of the Han B® series with size 6B configuration, specifically engineered with low construction (LC) design for installations with limited vertical clearance while maintaining side entry M20 cable gland for optimal lateral cable management in confined spaces.

Key Features

• Low construction design for minimal height profile
• Side entry configuration for lateral cable routing
• Single locking lever for secure engagement
• Size 6B with M20 side cable entry
• Dual peg mounting system for enhanced stability
• Aluminum die-cast construction, RAL 7037 (dust grey) finish
• Temperature range: -40°C to +125°C
• IP65 protection rating
• 90° cable exit angle for lateral routing
• Compatible with Han 6B inserts and bases

Technical Specifications

• Housing Size: 6B
• Construction: Low construction (LC)
• Cable Entry: Side entry, 1 x M20
• Mounting: 2 pegs for secure positioning
• Temperature Range: -40°C to +125°C
• Material: Aluminum die-cast, powder-coated RAL 7037
• Protection: IP65 protection rating
• UL Rating: NEMA 4/4X/12 (UL 50/UL 50E)
• Locking: Single locking lever with Han-Easy Lock®
• Series: Han® B
• Cable Exit Angle: 90°
• Standards: IEC 60529, UL 50/UL 50E
• Locking Material: Polycarbonate and stainless steel

Installation Details

• Low construction minimizes vertical space requirements
• Side entry design optimizes lateral cable routing
• Dual peg system ensures accurate positioning and mounting stability
• M20 cable gland for standard cable management
• Single lever provides secure engagement with reduced height profile
• 90° cable exit angle facilitates lateral cable management

Applications

• Industrial installations with height restrictions
• Control systems requiring side cable routing with minimal clearance
• Automation equipment in confined vertical spaces
• Manufacturing systems where low profile is essential
• Applications requiring lateral cable management with space constraints
• Equipment installations where both side entry and low height are critical
• Process control systems with lateral cable routing requirements

Compatibility

• Compatible with Han 6B series inserts
• Works with various Han B® insert configurations
• Part of comprehensive Han B® connector system
• Enhanced mounting stability with dual peg design
• Suitable for applications requiring low construction benefits

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• UL Rating: NEMA 4/4X/12 protection standards
• Construction: Corrosion-resistant aluminum die-cast with powder coating
• Sealing: NBR seal technology for harsh environments
• Durability: ≥500 mating cycles for long-term reliability

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
• Quality: HARTING manufacturing standards
• UL/CSA Approvals: UL 1977, CSA-C22.2 No. 182.3
• CE Marking: Yes
