Harting Hood, side entry, M20, single locking, size 10B

Product Overview

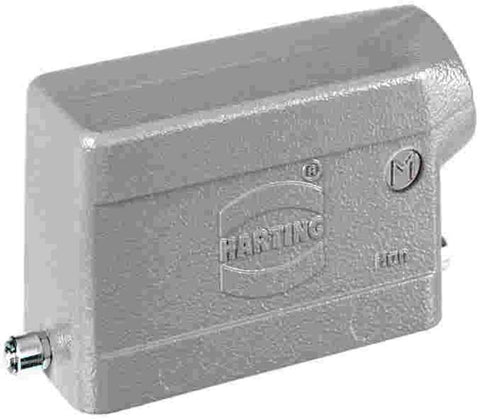

The Han B Hood Side Entry LC 2 Reels M20 is a low construction connector hood for industrial applications requiring lateral cable routing with advanced cable management systems. Features aluminum die-cast construction with dual reel mechanism and side entry M20 cable gland for enhanced cable strain relief and routing control in space-constrained lateral installations.

Key Features

• Low construction (LC) design for minimal height profile
• Side entry configuration with dual reel system
• Size 10B with M20 side cable entry
• Aluminum die-cast construction, RAL 7037 finish
• Dual reel mechanism for enhanced cable management
• IP65 protection, -40°C to +125°C operation

Technical Specifications

• Housing Size: 10B
• Construction: Low construction (LC)
• Cable Entry: Side entry, 1 x M20 with dual reels
• Temperature Range: -40°C to +125°C
• Protection: IP65, NEMA 4/4X/12
• Material: Aluminum die-cast, powder-coated RAL 7037
• Cable Management: Dual reel system for strain relief
• Mating Cycles: ≥500 cycles
• Standards: IEC 60529, UL 50/UL 50E

Installation Details

• Low construction minimizes vertical space requirements
• Dual reel system provides enhanced cable strain relief
• Side entry design for lateral cable routing and access
• Compatible with Han 10B series bases and inserts

Applications

• Applications requiring advanced cable management with lateral routing
• Industrial systems with high cable stress and side access requirements
• Equipment needing enhanced strain relief with low profile design
• Space-constrained installations where cable protection and side entry are critical

Compatibility

• Compatible with Han 10B series bases and inserts
• Part of Han B® connector system
• Low construction hood with advanced cable management

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• Construction: Corrosion-resistant aluminum die-cast
• Durability: ≥500 mating cycles with enhanced cable protection

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
