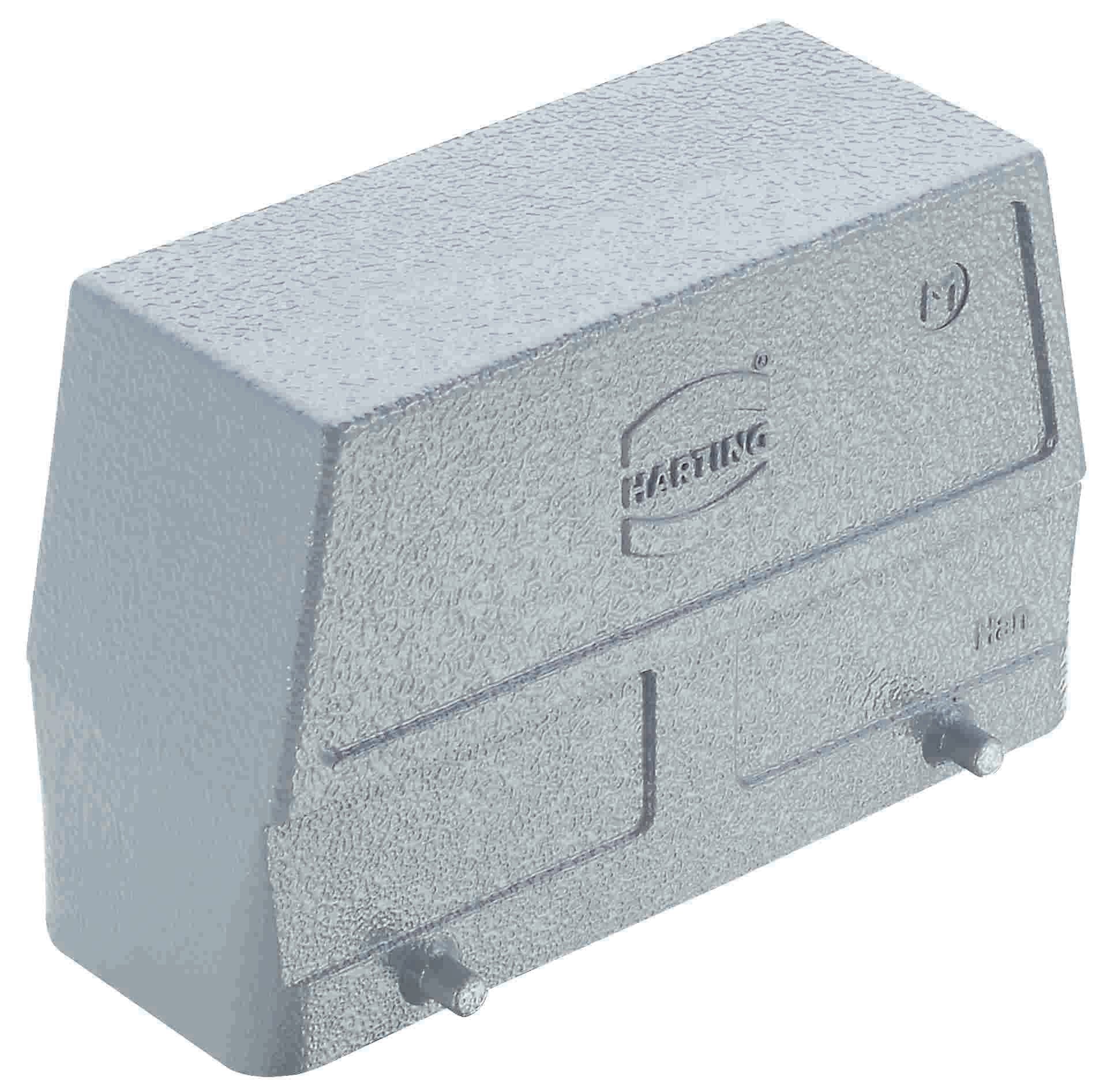

Harting Hood, Double locking, no cable entry, size 24B

Product Overview

The Han B Hood HC 4 Pegs no openings (SKU: 09300240801) is a specialized high-construction aluminum hood designed for maximum capacity applications requiring sealed connectivity without cable entries. Features 4-peg mounting configuration with no openings for applications where complete sealing and protection of internal connections is critical.

Key Features:

• Maximum Capacity: Size 24B - largest in the Han® B series for highest density applications
• High Construction (HC): Enhanced height for superior internal component accommodation
• No Cable Openings: Sealed design with no cable entry points for maximum protection
• 4-Peg Mounting: Secure mechanical attachment with four mounting pegs
• Sealed Construction: Complete environmental protection for internal connections
• Specialized Application: Designed for unique connectivity requirements

Technical Specifications:

• Article Number: 09 30 024 0801
• Category: Hoods/Housings
• Series: Han® B
• Size: 24B (maximum capacity)
• Type: Hood, high construction, sealed
• Construction: High construction (HC)
• Mounting: 4 pegs
• Cable Entries: None (sealed design)
• Material: Aluminum construction
• Special Feature: No openings for complete sealing

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• Enhanced Protection: Superior sealing due to no openings design
• Industrial Standards: Suitable for specialized industrial applications

Applications: Essential for specialized applications requiring maximum environmental protection where no external cable connections are needed. Ideal for internal connection protection, sealed junction applications, and systems where all connections are made through the base housing or require complete isolation from environmental contaminants.

Compatibility:

• Compatible with Han® B series size 24B base housings and inserts
• No cable entry openings - all connections made through base housing
• High construction provides maximum internal space for complex insert configurations
• Suitable for specialized applications requiring complete environmental isolation
• Accommodates maximum insert configurations within sealed environment

Download existing graphical data for this product:

• Product Data Sheet (PDF)
• Product Declaration Certificate (PDF)
• EPLAN Data Portal - CAD Data & Technical Details
