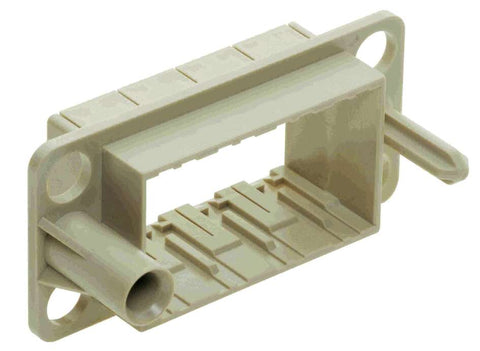

Harting Docking frame for 4 modules, float mount Part number 09140161701

Product Overview

The docking frame for 4 modules, float mount is a specialized modular docking frame designed for the HARTING Han-Modular® connector system. This float mount frame accommodates up to 4 modules in positions A through D and is engineered for applications requiring floating connector alignment, providing flexible modular connectivity solutions for industrial applications where connector misalignment compensation is essential.

Key Features

• Series: Han-Modular®
• Category: Accessories
• Type: Docking frame
• Configuration: 4 module positions (A-D)
• Mount Type: Float mount design
• Module Capacity: 4 modules maximum
• Compatibility: Han 16B connectors
• Connector Size: Han 16
• Design: Floating alignment capability
• Application: Misalignment compensation
• System: Modular connector framework

Technical Specifications

This Han-Modular docking frame is designed as part of a system consisting of insert modules and frames into which the insert modules fit. These frames may be fitted to standard Han® housings, allowing a variety of insert configurations within one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power, and pneumatic lines when a solution is required with one connector. The float mount design allows for connector misalignment compensation, making it ideal for applications where precise connector alignment may be challenging due to mechanical tolerances or thermal expansion. The frame provides secure mounting while maintaining the ability to accommodate slight positional variations during mating.

Compliance & Environmental

• Compatible with Han-Modular® system
• Float mounting capability for alignment compensation
• Suitable for Han 16B connector applications
• Industrial-grade construction
• Designed for protected electrical areas
• Compatible with standard Han® housings
• Supports modular connector configurations
• RoHS compliant design

Applications

Ideal for industrial control systems, power distribution panels, and machinery where connector alignment may vary due to mechanical tolerances, thermal expansion, or vibration. Perfect for applications requiring multiple connection types (power, signal, data, pneumatic) consolidated into a single connector assembly with floating alignment capability. Suitable for automated equipment, robotics, and manufacturing systems where precise connector positioning may be challenging. The float mount design makes it particularly useful in applications with moving parts, thermal cycling, or where installation tolerances require connector alignment flexibility while maintaining reliable electrical connections.
