Harting Docking frame for 4 modules, fixed mount

Product Overview

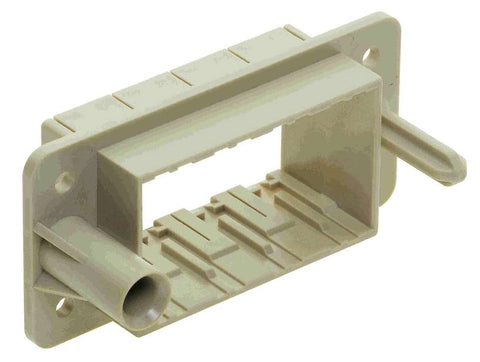

The docking frame for 4 modules, fixed mount is a rigid modular docking frame designed for the HARTING Han-Modular® connector system. This fixed mount frame accommodates up to 4 modules in positions A through D and is engineered for applications requiring precise, stable connector positioning, providing reliable modular connectivity solutions for industrial applications where exact alignment and secure mounting are essential.

Key Features

• Series: Han-Modular®
• Category: Accessories
• Type: Docking frame
• Configuration: 4 module positions (A-D)
• Mount Type: Fixed mount design
• Module Capacity: 4 modules maximum
• Compatibility: Heavy duty power connectors
• Connector Size: Han 16
• Design: Rigid, precise positioning
• Application: Stable connector mounting
• System: Modular connector framework

Technical Specifications

This Han-Modular docking frame is designed as part of a system consisting of insert modules and frames into which the insert modules fit. These frames may be fitted to standard Han® housings, allowing a variety of insert configurations within one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power, and pneumatic lines when a solution is required with one connector. The fixed mount design provides rigid, precise positioning for applications where exact connector alignment is critical and movement must be minimized. This frame ensures stable, repeatable connections while maintaining the modular flexibility of the Han-Modular system.

Compliance & Environmental

• Compatible with Han-Modular® system
• Fixed mounting for precise positioning
• Suitable for heavy duty power connector applications
• Industrial-grade construction
• Designed for protected electrical areas
• Compatible with standard Han® housings
• Supports modular connector configurations
• RoHS compliant design
• Made in Germany (DE)

Applications

Ideal for industrial control systems, power distribution panels, and machinery where precise connector alignment and stable mounting are critical. Perfect for applications requiring multiple connection types (power, signal, data, pneumatic) consolidated into a single connector assembly with fixed, repeatable positioning. Suitable for stationary equipment, control panels, and manufacturing systems where connector movement must be eliminated and precise alignment maintained. The fixed mount design makes it particularly useful in applications with high mechanical stress, vibration resistance requirements, or where precise connector positioning is essential for optimal electrical performance and long-term reliability.
