Harting Connector, male, grey, 10 contacts, 2.5A

Product Overview

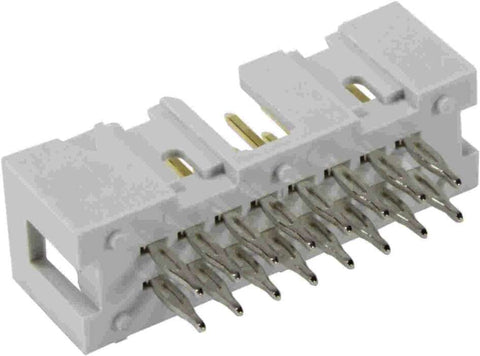

The SEK-18 SV MA LP STR55 PR-IN 10P PL2 (SKU: 09185106329) is a male connector from HARTING's SEK Low-profile series, designed for press-in termination applications. This compact PCB connector features 10 contacts arranged in 2 rows with a 2.54mm pitch, offering a rated current of 1A. The connector is manufactured with thermoplastic resin (PBT) in grey color and features straight contact orientation. It complies with Performance Level 2 according to IEC 60603-13, making it ideal for space-constrained PCB applications requiring reliable connectivity.

Key Features & Specifications

• Series: SEK Low-profile
• Category: Connectors
• Element: Male connector
• Termination Method: Press-in termination
• Number of Contacts: 10
• Contact Rows: 2
• Contact Spacing: 2.54mm pitch
• Rated Current: 1A
• Contact Orientation: Straight
• Termination Length: 5.5mm
• Temperature Range: -55°C to +125°C
• Material: Thermoplastic resin (PBT)
• Color: Grey
• Performance Level: 2, acc. to IEC 60603-13

Applications & Benefits

HARTING SEK connectors are designed for PCB-to-cable and PCB-to-PCB connections in compact electronic applications. The low-profile design makes this connector series particularly suitable for space-constrained applications where board height is critical. The press-in termination method provides secure and reliable connections without the need for soldering, making it ideal for high-volume production environments and applications requiring easy assembly.

These connectors are commonly used in industrial electronics, measurement and control systems, telecommunications equipment, and consumer electronics where reliable signal transmission and compact design are essential requirements.

Technical Characteristics

This low-profile male connector offers:

• Press-in termination for solderless connections
• Low-profile design for space-constrained applications
• High-quality copper alloy contacts for reliable conductivity
• Noble metal over Ni mating side, Ni termination side plating
• Excellent electrical performance with low contact resistance (≤ 20 mΩ)
• High insulation resistance (>10⁹ Ω)
• Robust construction for industrial applications
• Compatible with HARTING SEK connector system
• Suitable for PCB-to-cable and PCB-to-PCB connections
• Mating cycles ≥ 50 for reliable operation

Compliance & Environmental

• Performance Level 2, acc. to IEC 60603-13
• Test voltage Ur.m.s. 1 kV
• Isolation group IIIa (175 ≤ CTI < 400)
• RoHS compliant
• Operating temperature range: -55°C to +125°C
• High insulation resistance and low contact resistance
• Industrial-grade thermoplastic construction

Download existing graphical data for this product:

• Product Data Sheet
• Product Datasheet
