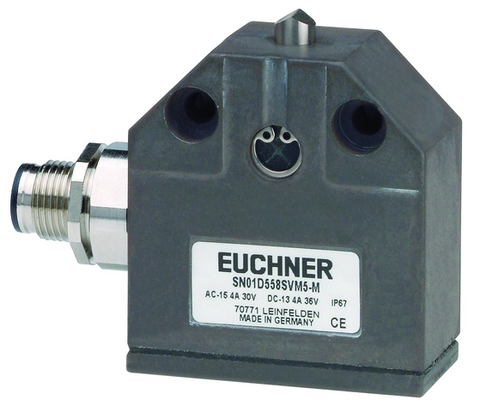

Euchner SN01D558SVM5-M Single limit switch, chisel plunger, M12
Euchner SN01D558SVM5-M Single limit switch, chisel plunger, M12

Euchner SN01D558SVM5-M Single limit switch, chisel plunger, M12

This precision limit switch features a chisel plunger made of stainless steel. It operates with a snap-action switching contact, offering both NC and NO contact options. It is housed in anodized die-cast alloy and provides IP67 protection.
Vendor: Euchner
SKU: 088625
Availability: In stock
Product type: Field Sensing & Connectivity
Please hurry! Only 1 left in stock
Ask an expert
Description
Description
x

This precision limit switch features a chisel plunger made of stainless steel. It operates with a snap-action switching contact, offering both NC and NO contact options. It is housed in anodized die-cast alloy and provides IP67 protection.

Specifications
Specifications
x
IP RatingIP67
Global Compliance / Compliance with StandardsIEC 60269-1
Material: Housing MaterialAnodised die-cast alloy / Silver alloy / Gold flashed
Weight (g)122g
Connection TypePlug connector M12, adjustable
Utilization CategoryAC-15 4 A 30 V / DC-13 3 A 24 V
Switching Currentmin. at DC 5V 10 mA
Actuating ElementChisel plunger
Actuating Force15 / 20 N
Documents
Documents
x
Download Datasheet
