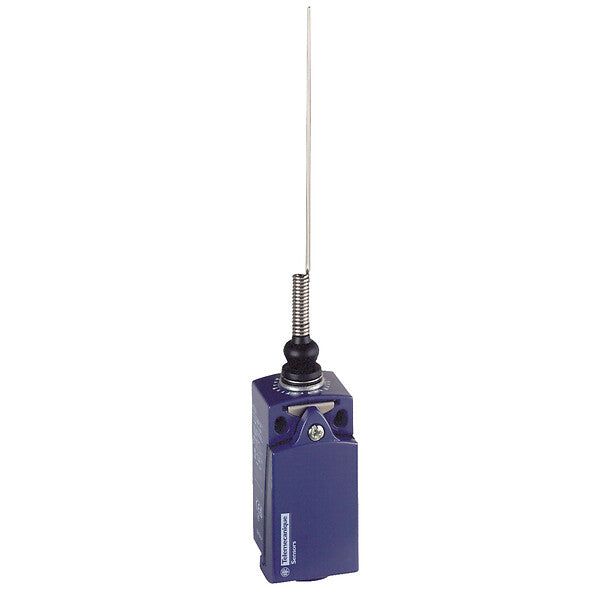

This limit switch uses a cats whisker (plunger on spring loaded element) actuator with a total length of 142mm, operating with snap action contacts in NO + NC configuration. It carries a contact current rating of 10A and a switched voltage of up to 250V AC or 250V DC, with a metal body rated IP67 for use in wet or dusty industrial environments. The M16 connection and IP67 protection suit applications where the switch is exposed to washdown or contamination, within an operating temperature range of -25°C to +70°C. It is typically applied in control panels and machines for position sensing and end-of-travel detection.

Key specifications

• IP rating: IP67
• Connection: M16
• Operating temperature: -25°C to +70°C
