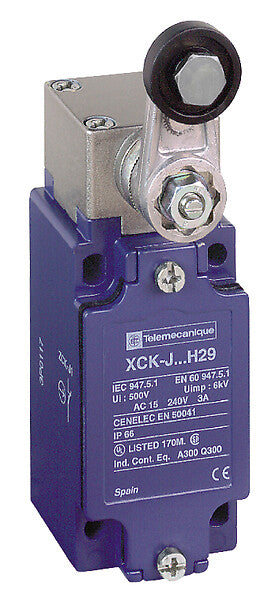

Name: Schneider Limit switch, snap action, M20, 1NC+1NO, 2-pole
Brand: Schneider Electric
SKU: XCKJ10513H29

Schneider Limit switch, snap action, M20, 1NC+1NO, 2-pole

This limit switch uses a snap-action mechanism with a 1NC+1NO, 2-pole contact configuration, providing simultaneous normally closed and normally open outputs for position sensing or end-of-travel detection. It features an M20 cable entry for connection into the control circuit. Such switches are typically fitted to machine guards, actuators, and moving...

Vendor: Schneider Electric

Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.

Availability: Out Of Stock

Product type: Field Sensing & Connectivity

Please hurry! Only 0 left in stock

Description
Specifications
Documents
Alternatives

Product data sheet	XCKJ10513H29
Characteristics	limit switch XCKJ - steel roller lever - 1NC+1NO - snap action - M20
Range of product	OsiSense XC
Series name	Standard format
Product or component type	Limit switch
Device short name	XCKJ
Sensor design	Form A conforming to CENELEC EN 50041
Body type	Fixed
Head type	Rotary head
Material	Metal
Body material	Zamak
Head material	Zamak
Fixing mode	By the body
Movement of operating head	Rotary
Type of operator	Spring return roller lever metal
Type of approach	Lateral approach, 1 or 2 programmable direction
Cable entry	1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7…13 mm
Number of poles	2
Contacts type and composition	1 NC + 1 NO
Contact operation	Snap action
Switch actuation	By 30° cam
Contacts insulation form	Zb
Number of steps	1
Positive opening	With
Positive opening minimum	torque 0.5 N.m
Minimum torque for tripping	0.25 N.m
May 11, 2020	1
Maximum actuation speed	1.5 m/s
[Ie] rated operational current	3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A 0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal	10 A
[Ui] rated insulation voltage	300 V conforming to UL 508 500 V (pollution degree 3) conforming to IEC 60947-1 300 V conforming to CSA C22.2 No 14
Maximum resistance across terminals	25 MOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand	voltage IEC 60664 6 kV IEC 60947-1 6 kV
Short-circuit protection	10 A cartridge fuse, type gG
Mechanical durability	30000000 cycles
Width	40 mm
Height	77 mm
Depth	44 mm
Net weight	0.49 kg
Terminals description ISO n°1	(21-22)NC (13-14)NO
Shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance	25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
IP degree of protection	IP66 conforming to IEC 60529
IK degree of protection	IK07 conforming to EN 50102
Overvoltage category	Class I conforming to IEC 61140 Class I conforming to NF C 20-030
Ambient air temperature for operation	-25…70 °C
Ambient air temperature for storage	-40…70 °C
Protective treatment	TC
Product certifications	UL CCC CSA
Standards	UL 508 EN 60947-5-1 IEC 60204-1 EN 60204-1 CENELEC EN 50041 CSA C22.2 No 14 IEC 60947-5-1
