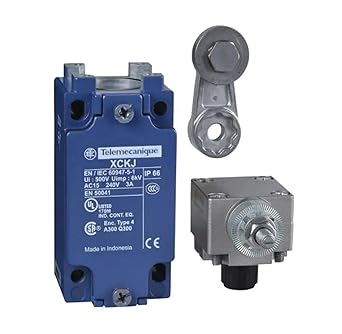

Name: Schneider Limit switch, th/plastic, 1NC + 1NO, M20
Brand: Schneider Electric
SKU: XCKJ10511H29

Schneider Limit switch, th/plastic, 1NC + 1NO, M20 Schneider Electric

This limit switch uses a thermoplastic housing and provides one normally closed and one normally open contact for position detection duties. The M20 cable entry allows connection into standard conduit and gland arrangements typical of industrial control panels and machine enclosures. It is used to signal the presence or position...

Vendor: Schneider Electric

Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.

Availability: Out Of Stock

Product type: Field Sensing & Connectivity

Please hurry! Only 0 left in stock

Description
Specifications
Documents
Alternatives

Product data sheet	XCKJ10511H29
Switch actuation	By 30° cam
Contacts insulation form	Zb
Number of steps	1
Positive opening	With
Positive opening minimum	torque 0.5 N.m
Minimum torque for tripping	0.25 N.m
Maximum actuation speed	1.5 m/s
[Ie] rated operational current	3 A at 240 V, AC-15, A300 conforming to IEC 60947-5-1 appendix A 0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A
[Ithe] conventional enclosed	thermal current 10 A
[Ui] rated insulation voltage	300 V conforming to UL 508 500 V (pollution degree 3) conforming to IEC 60947-1 300 V conforming to CSA C22.2 No 14
Maximum resistance across	terminals 25 MOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand	voltage 6 KV conforming to IEC 60664 6 kV conforming to IEC 60947-1
Short-circuit protection	10 A cartridge fuse, type gG
Mechanical durability	30000000 cycles
Width	40 mm
Height	77 mm
Jul 30, 2024	1
Depth	44 mm
Net weight	0.48 kg
Terminals description ISO n°1	(21-22)NC (13-14)NO
Shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance	25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
IP degree of protection	IP66 conforming to IEC 60529
IK degree of protection	IK07 conforming to IEC 62262
Overvoltage category	Class I conforming to IEC 61140 Class I conforming to NF C 20-030
Ambient air temperature for operation	-25…70 °C
Ambient air temperature for storage	-40…70 °C
Protective treatment	TH
Product certifications	CCC[RETURN]UL[RETURN]CSA
Standards	IEC 60947-5-1 IEC 60204-1 CSA C22.2 No 14 CENELEC EN 50041 IEC 60204-1 IEC 60947-5-1 UL 508
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.400 cm
Package 1 Width	7.000 cm
Package 1 Length	12.800 cm
Package 1 Weight	473.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	18
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	8.935 kg
Unit Type of Package 3	P06
Number of Units in Package 3	288
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	152.868 kg
