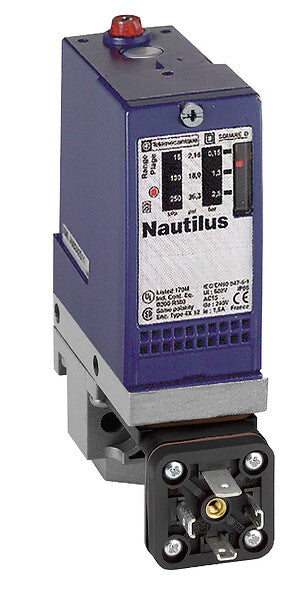

Schneider Electromechanical pressure sensor, 2 c/o, 300bar Part number XMLA020A2D11

This electromechanical pressure sensor detects hydraulic or pneumatic pressure and switches at a rating of 300 bar, providing an electrical output when the set threshold is reached. It is fitted with 2 c/o (change-over) contacts, allowing simultaneous control or signalling of two independent circuits from a single sensing point. It...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This electromechanical pressure sensor detects hydraulic or pneumatic pressure and switches at a rating of 300 bar, providing an electrical output when the set threshold is reached. It is fitted with 2 c/o (change-over) contacts, allowing simultaneous control or signalling of two independent circuits from a single sensing point. It is typically used in industrial machinery and fluid power systems where mechanical monitoring of pressure levels is required for control or protection purposes.

Specifications
Specifications
x
Product data sheetXMLA020A2D11
Natural differential at low setting0.4 bar (+/- 0.2 bar)
Natural differential at high setting1 bar (+/- 0.1 bar)
Maximum permissible pressure- per cycle 25 bar
Maximum operating rate120 cyc/mn
Repeat accuracy2 %
[Ui] rated insulation voltage300 V conforming to UL 508 500 V conforming to IEC 60947-1 300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstandvoltage 6 kV conforming to IEC 60947-1
Dec 19, 20241
Auxiliary contacts operationSnap action
Contacts materialSilver contacts
Maximum resistance across terminals25 MOhm conforming to IEC 255-7 category 3 25 mOhm conforming to NF C 93-050 method A
Short-circuit protection10 A cartridge fuse, type gG (gl)
Mechanical durability5000000 cycles
SettingExternal
Height113 mm
Depth75 mm
Width35 mm
Net weight0.715 kg
StandardsCE UL 508 IEC 60947-5-1 CSA C22.2 No 14
Product certificationsLROS (Lloyds register of shipping) [RETURN]CSA[RETURN]CCC[RETURN]BV[RETURN]UL
Protective treatmentTC standard version
Ambient air temperature for operation-25…70 °C
Ambient air temperature for storage-40…70 °C
Operating positionAny position
Vibration resistance4 gn conforming to IEC 60068-2-6 (f = 30…500 Hz)
Shock resistance50 gn conforming to IEC 60068-2-27
Electrical shock protection classClass I conforming to IEC 1140 Class I conforming to IEC 536 Class I conforming to NF C 20-030
IP degree of protectionIP65 conforming to IEC 60529
EU RoHS DirectivePro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury freeYes
RoHS exemption informationYes
Warranty18 months
Unit Type of Package 1PCE
Number of Units in Package 11
