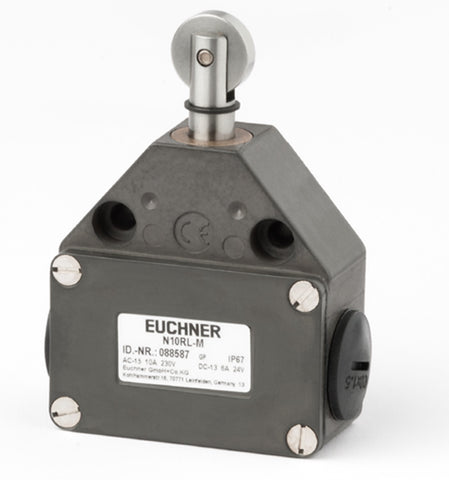

Euchner N10RL-M Precision single limit switch, ext r/plunger
Euchner N10RL-M Precision single limit switch, ext r/plunger

Euchner N10RL-M Precision single limit switch, ext r/plunger Part number 088587

Plunger material stainless steel
Vendor: Euchner
Rubicon Industrial Technology is the exclusive South African distributor for Euchner.
Availability: In stock
Product type: Field Sensing & Connectivity
Please hurry! Only 3 left in stock
Description
Description
x
  • Plunger material stainless steel
N10RL-M (Order no. 088587)
Specifications
Specifications
x
Plunger MaterialStainless Steel
Rated Insulation Voltage Ui250 V
Rated Impulse Withstand Voltage Uimp2.5 kV
Utilization Category AC-12 DC-13 AC-1516 A 230 V
Thermal Rated Current Ith10 A
Approach Speed0.01 ... 20 m/min
Number of Door Position NC Contacts1
Number of Door Position NO Contacts1
Actuating ElementExtended Roller Plunger (D roller = 18 mm)
Actuating Forcemin. 20 N
Installation OrientationAny
Mechanical Life30 x 10⁶
Switching PrincipleSnap-action Switching Contact
Degree of ProtectionIP67
Ambient Temperature-5 ... +80 °C
Contact MaterialSilver Alloy, Gold Flashed
Housing MaterialAnodized Die-Cast Alloy
Documents
Documents
x
Download Datasheet
