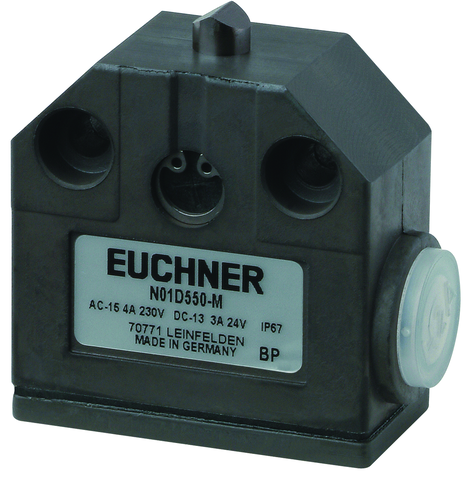

Euchner N01D572-M Single limit switch, chisel plunger Euchner

The Euchner N01D572-M is a single limit switch fitted with a chisel plunger actuating element, providing one changeover contact for position sensing. It connects via an M12 x 1.5 connector and operates over an approach speed range of 0.01 to 20 m/min with an actuating force of 15 to 20...

Vendor: Euchner

Availability: In stock

Product type: Field Sensing & Connectivity

Please hurry! Only 1 left in stock

Description
Specifications
Documents
Alternatives

N01D572-M (Order no. 087162)

Name: Euchner N01D572-M Single limit switch, chisel plunger
Brand: Euchner
SKU: 087162

Product Overview

PDF

Precision single limit switch N01, chisel plunger

Plunger material: stainless steel
For temperatures up to: 180 °C

Description

Dimension drawing

Wiring diagram ES620

Dimensional Drawings

Connection Examples

Technical Data

Approvals

Electrical Connection Values

Connection cross section	0.14 - 1 mm² (Soldered connection)
Rated insulation voltage Ui	250 V
Rated impulse withstand voltage Uimp	2.5 kV
Utilization category
DC-13	1 A 24 V
AC-15	4 A 230 V
Short circuit protection according to IEC 60269-1	5A gG
Switching current
min. at DC 12V	10 mA
thermal rated current Ith	5 A

Mechanical Values and Environment

Approach speed	0.01 - 20 m/min
Connection type	1 x M12 x 1.5
Number of door position NC contacts	1 Changeover contact
Number of door position NO contacts	1 (Changeover contact)
Actuating element	Chisel plunger
Actuating force	15 - 20 N
Installation orientation	any
Mechanical life	0.5 x 10⁶
Switching principle	Changeover contact with snap-action function
Degree of protection	IP67
Ambient temperature	-5 to 125 °C (Can be used at 180 °C 200 h)
Material	Housing: Anodized die-cast alloy, Contact: Silver alloy, gold flashed
