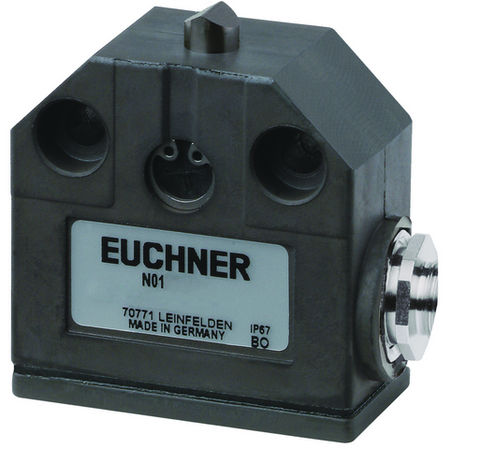

Name: Euchner N01D550-MC2018 Single limit switch, chisel plunger, N01
Brand: Euchner
SKU: 085708
Price: 0.01 ZAR
Availability: InStock

Product Overview

Precision single limit switch N01, chisel plunger, cable gland

Plunger material: stainless steel

Description

Similar to figure

Dimension drawing

Wiring diagram ES620

Dimensional Drawings

Connection Examples

Technical Data

Approvals

CCC_2020980305000523_CQC2013010305627343_Version 2023

Electrical Connection Values

Connection cross section	0.14 - 1 mm² (Soldered connection)
Rated insulation voltage Ui	250 V
Rated impulse withstand voltage Uimp	2.5 kV
Utilization category
AC-15	2 A 230 V
DC-13	2 A 24 V
Short circuit protection according to IEC 60269-1	6A gG
Switching current
min. at DC 24V	10 mA
thermal rated current Ith	6 A

Mechanical Values and Environment

Approach speed	0.01 - 20 m/min
Connection type	1 x M12 x 1.5 with special cable gland
Number of door position NC contacts	1 Changeover contact
Number of door position NO contacts	1 (Changeover contact)
Actuating element	Chisel plunger
Actuating force	15 - 20 N
Installation orientation	any
Mechanical life	10 x 10⁶
Switching principle	Changeover contact with snap-action function
Degree of protection	IP67
Ambient temperature	-5 to 80 °C
Material
Contact	Silver alloy, gold flashed
Housing	Anodized die-cast alloy
