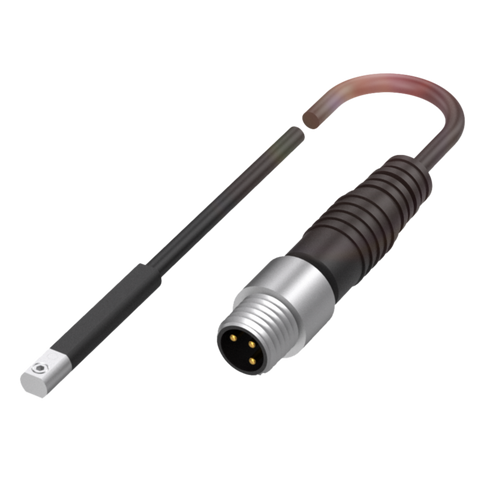

Balluff BMF 243K-PS-C-2A-SA2-S49-00,3 C-slot sensor PNP NO Part number BMF00EL

This is a magnetic C-slot sensor designed for mounting directly into the slot of pneumatic cylinders to detect piston position. It provides a PNP normally open switching output with a switching frequency of 3000 Hz, operating from a 10...30 VDC supply. The PA 12 housing is rated IP67 and suited to ambient temperatures from -25 to 85 °C, with connection via an M8x1 male 3-pin connector, making it appropriate for automation applications requiring reliable position feedback on cylinder-mounted equipment.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: M8x1-Male, 3-pin
• Output: PNP normally open (NO)
• Operating temperature: -25...85 °C
• Dimensions: 24 x 3 x 3.75 mm
