Description

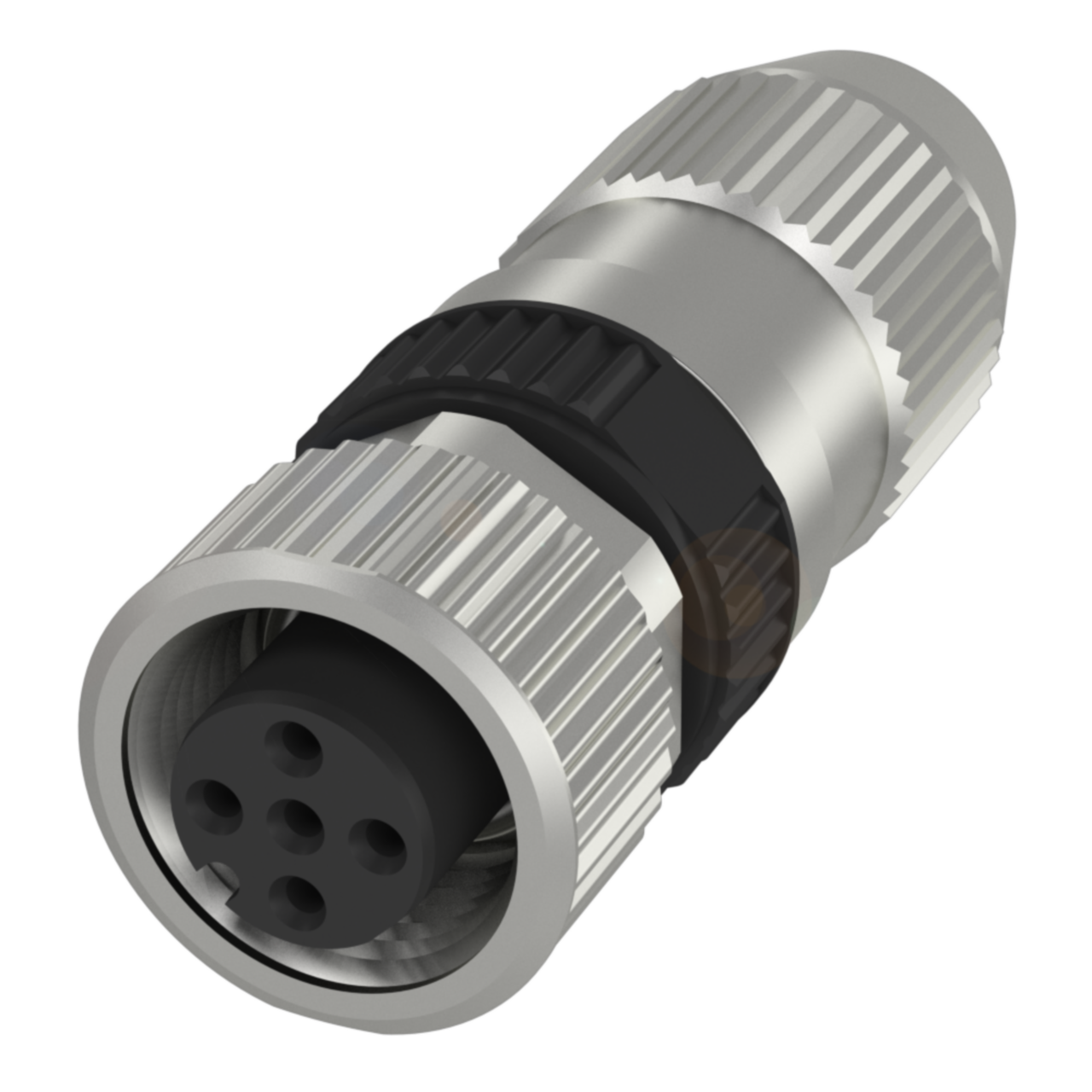

xThe BKS-S107-RT14 is a field-attachable M12 female connector with a 5-pin straight configuration, allowing on-site cable termination rather than the use of pre-moulded cordsets. It accepts cable diameters from 2.9mm to 5.1mm with conductor cross sections of 0.14 to 0.34 mm², and features a PA housing with brass contacts and a nickel-plated brass jacket. Rated IP67 with an operating temperature range of -40°C to 85°C, it is suited to industrial automation wiring where connectors must be assembled or replaced in the field. The connector is rated for 32 VDC/VAC at 4A, making it appropriate for sensor and actuator level connections on machines and panels.
Key specifications
- IP rating: IP67
- Operating voltage: 32 VDC / 32 VAC
- Connection: M12 / Female Straight / 5 Pin
Specifications
x| IP Rating | IP67 |
| Temperature: Operating / Dynamic | -40°C to 85°C |
| Material: Housing / Grip | PA / Plastic |
| Material: Jacket / Cover Nut | Brass / Nickel-plated |
| Material: Sensing Surface / Contacts | Brass |
| Material: Contact Carrier | PA |
| Material: Wire Insulation | PP / PVC / TPE (Conductor Insulation Material) |
| Cable Diameter (mm) | 2.9mm ... 5.1mm |
| Conductor Cross-section | 0.14...0.34 mm² |
| Thread | M12 x 1 |
| Connection Type | M12 / Female Straight / 5 Pin |
| Tightening Torque | 0.6 |
| Operating Voltage | 32 VDC / 32 VAC |
| Current Rating / Rated Current | 4A |
