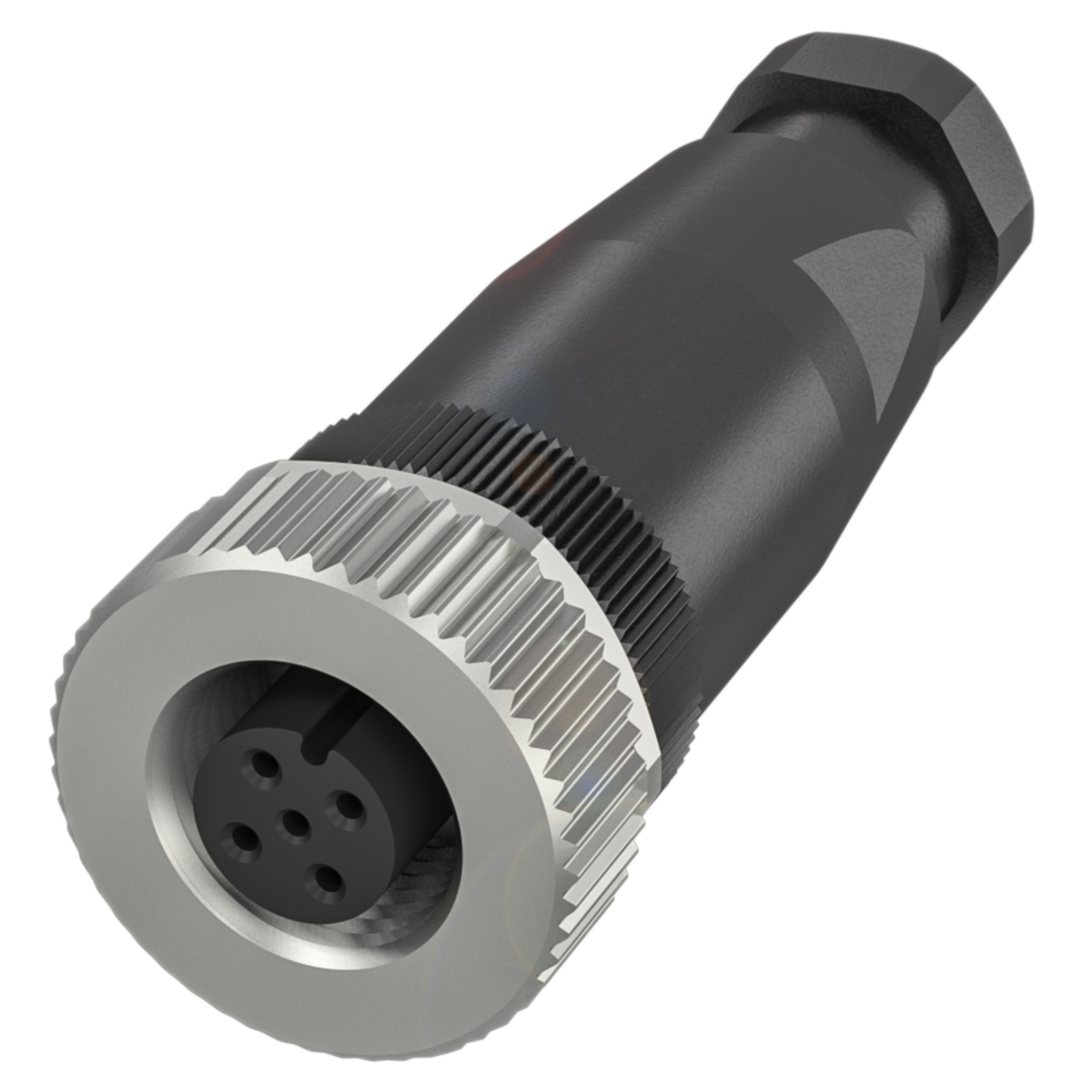

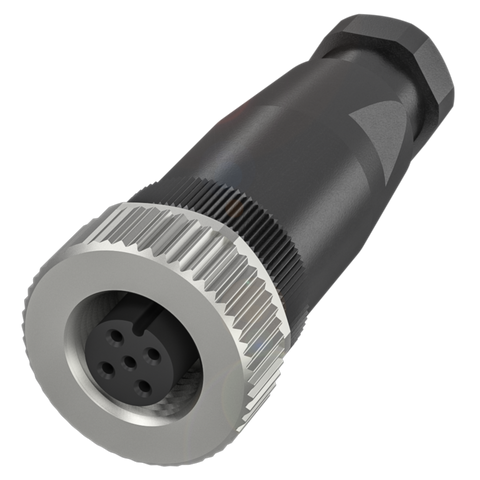

Balluff BCC M435-0000-1A-000-41X475-000, Field attachable, M12 Part number BCC06Z9

This is a field-wireable M12 connector with a 5-pin, A-coded female straight connection, allowing on-site termination to cables with a diameter of 4mm to 6mm and conductor cross sections of 0.14 to 0.75 mm². The housing and grip are constructed in PA with a die-cast zinc jacket and brass contacts, and the assembly carries an IP67 rating with CE, cURus and WEEE compliance. Rated for operation at up to 250 VDC/VAC and 4.0 A, it is suited to connecting sensors and field devices in industrial automation panels and machine wiring where terminated connectors must be assembled or replaced on site.

Key specifications

• IP rating: IP67
• Operating voltage: 250 VDC / 250 VAC
• Connection: M12x1 / Female / Straight / 5-pin / A-coded
