Balluff BCC M475-0000-1A-000-01X475-000 Field attachable Part number BCC06ZM

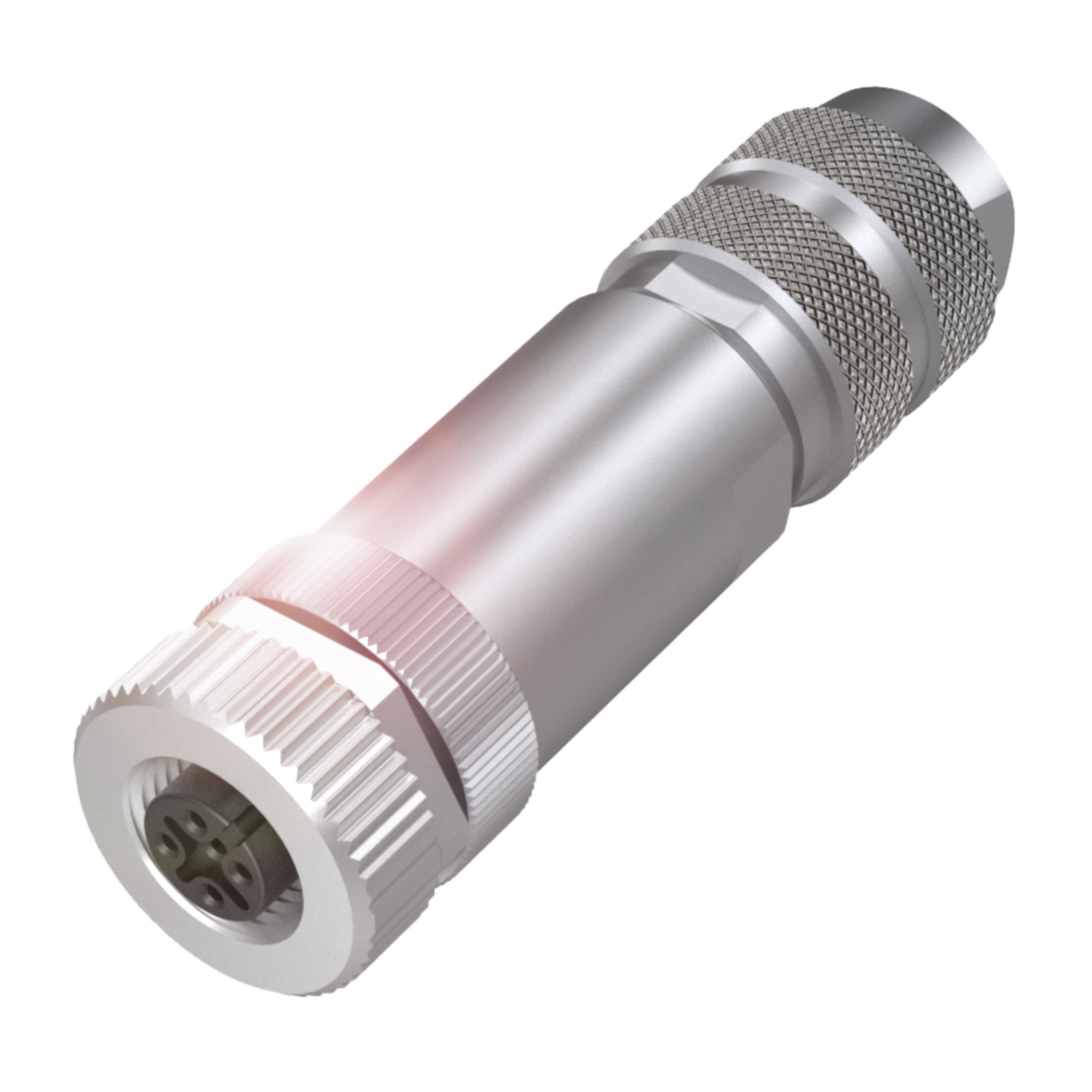

This is a field-wireable M12 connector from Balluff, terminated with a straight 5-pin, A-coded female M12x1 connection. It is rated for operating voltages up to 250 VDC / 250 VAC and an ambient temperature range of -40 to 85°C, with an IP67 rating for use in harsh industrial environments. Typical applications include connecting sensors and actuators in automation panels and machine wiring where field termination is required.

Key specifications

• IP rating: IP67
• Operating voltage: 250 VDC / 250 VAC
• Connection: M12x1-Female, straight, 5-pin, A-coded
• Operating temperature: -40...85 °C
