Description

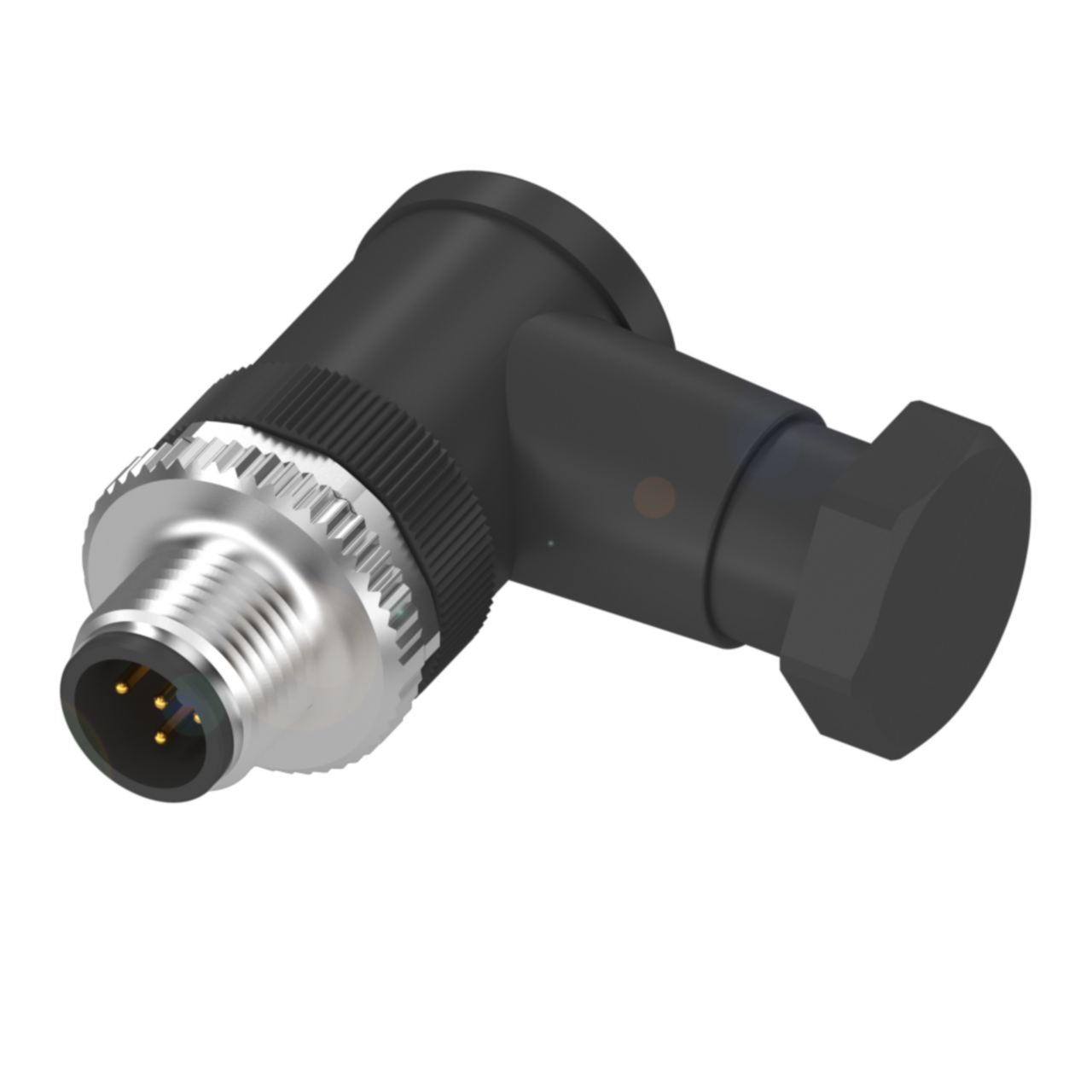

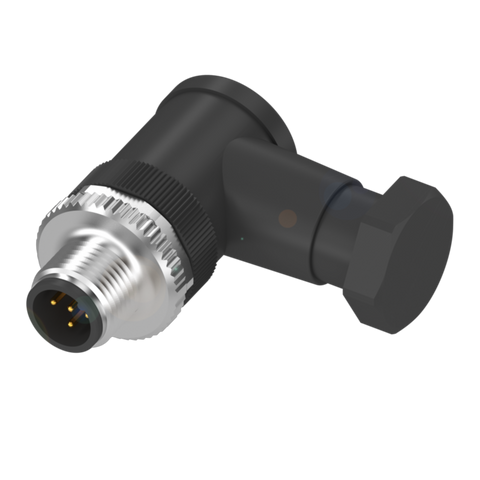

xThis is a field-wireable M12 connector with a 5-pin, A-coded male connection in an angled body, allowing on-site termination and cable assembly for automation wiring. It is rated IP67 for sealed connections and suits operating voltages up to 125 VDC / 125 VAC, with an ambient temperature range of -40 to 85°C for use in demanding industrial environments. Typical applications include field connectivity for sensors and actuators in industrial automation panels and machinery.
Key specifications
- IP rating: IP67
- Operating voltage: 125 VDC / 125 VAC
- Connection: M12x1-Male, angled, 5-pin, A-coded
- Operating temperature: -40...85 °C
Specifications
x| connection | M12x1-Male, angled, 5-pin, A-coded |
| operating_voltage | 125 VDC / 125 VAC |
| ambient_temperature | -40...85 °C |
| ip_rating | IP67 |
| approval_conformity | CEcURusWEEE |
