Description

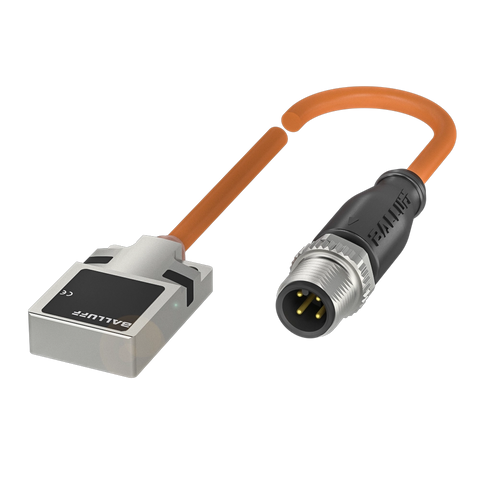

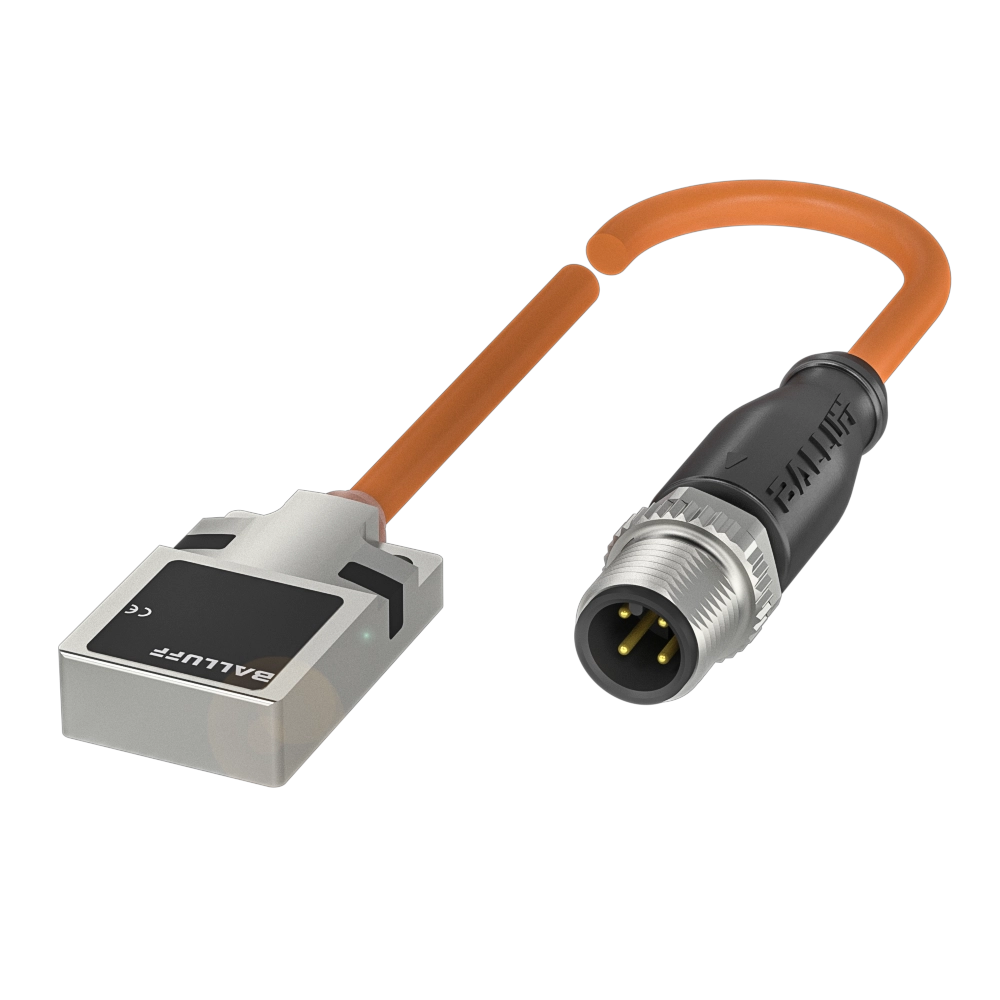

xBalluff’s magnetic-field-resistant inductive sensors are ideal for use in areas with strong magnetic fields such as in welding and induction hardening installations. They are insensitive to magnetic fields arising from electric welding currents up to 25 kA.
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Zinc die-casting |
| Material: Jacket / Cover Nut | TPU |
| Material: Sensing Surface / Contacts | PA 12 |
| Part Width (mm) | 20mm |
| Part Length (mm) | 32mm |
| Part Height (mm) | 8mm |
| Cable Diameter (mm) | 3.8mm |
| Connection Type | M12x1 / Male / 4-pin / A-code |
| Rated Operating Distance (mm) | 5mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 100 Hz |
| Rated Insulation Voltage | 24 V |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 VDC |
| Mounting Type | Flush mounting |
| Rated Operating Current | 200 mA |
