Description

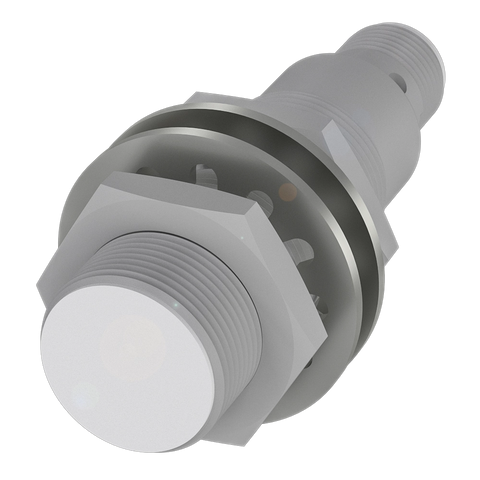

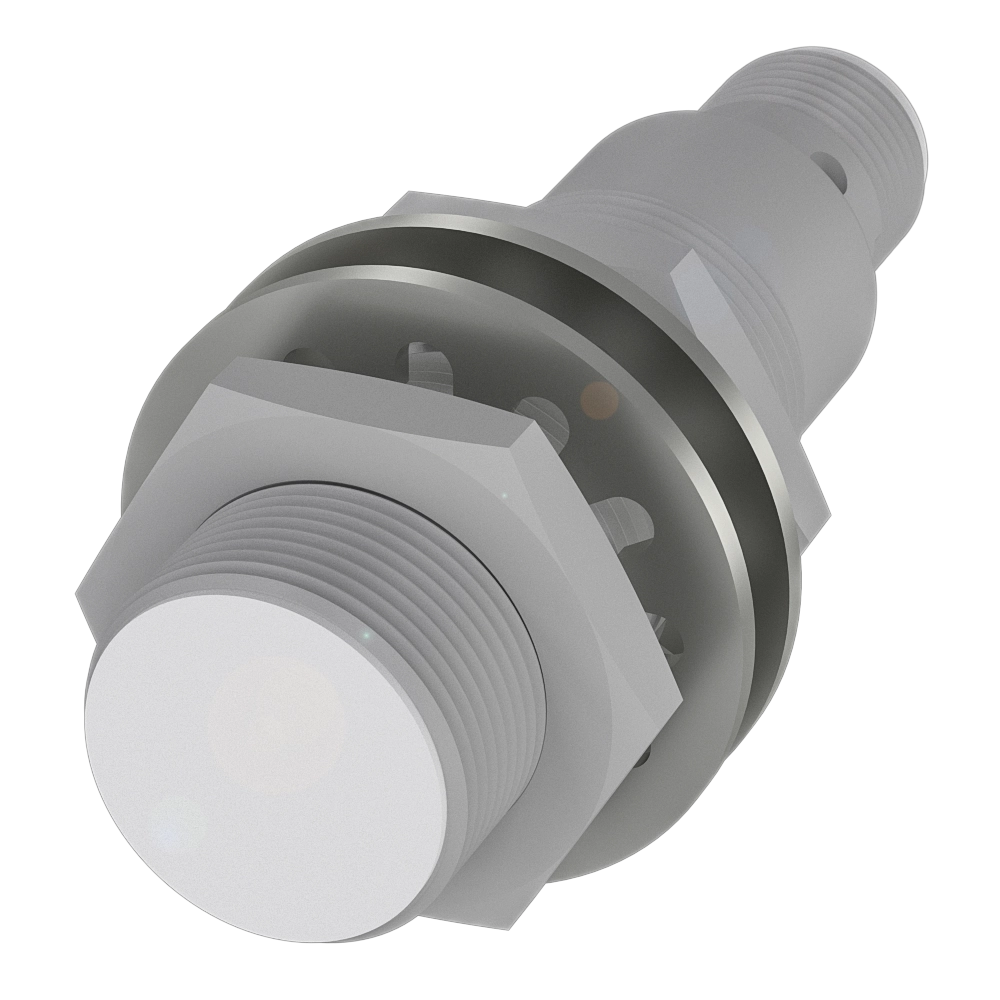

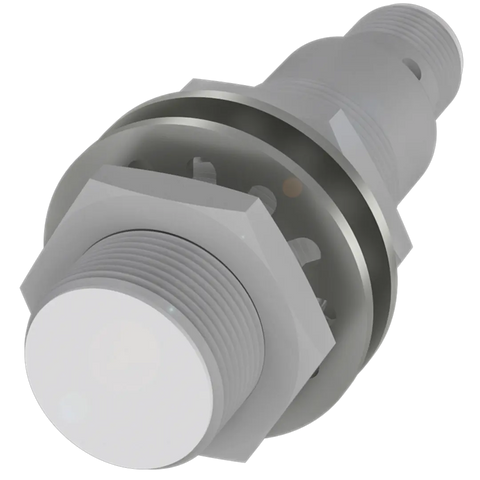

xBalluff’s magnetic-field-resistant inductive sensors are ideal for use in areas with strong magnetic fields such as in welding and induction hardening installations. They are insensitive to magnetic fields arising from electric welding currents up to 25 kA.
Specifications
x| dimension | Ø 18 x 65 mm |
| style_housing | M18x1 |
| installation | for flush mounting |
| range | 5 mm |
| switching_output | PNP normally open (NO) |
| switching_frequency | 200 Hz |
| housing_material | Brass, PTFE coated |
| material_sensing | PTFE |
| connection | Connector, M12x1-Male, 4-pin |
| operating_voltage | 10...30 VDC |
| ambient_temperature | -25...70 °C |
| ip_rating | IP67 |
| approval_conformity | cULusCEUKCAWEEE |
