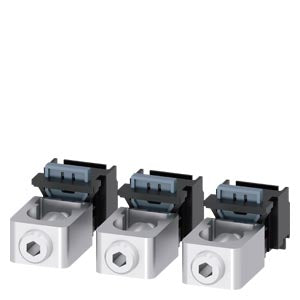

Siemens Wire connector, 3 piece
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
Product Overview
The Siemens 3VA9133-0JB11 is a professional wire connector designed for 3VA41 and 3VA51 series molded case circuit breakers. This TA1.1 terminal system accommodates conductors ranging from 8 AWG to 3/0, providing reliable electrical connections for medium to high-capacity power distribution applications. The 3-unit set offers aluminum construction for industrial electrical installations.
Key Features
- Wide Cable Range: Supports 8 AWG to 3/0 conductors for medium to high-capacity applications
- Dual Series Compatibility: Compatible with both 3VA41 and 3VA51 circuit breakers (125A)
- 3-Unit Configuration: Complete terminal set with 3 single aluminum lugs included
- TA1.1 Terminal System: Professional-grade circular conductor terminal design
- Lightweight Design: At 0.063 kg, easy handling and installation
- Compact Construction: Efficient 100 x 150 x 22 mm packaging dimensions
Technical Specifications
- Product Type: Wire connector, TA1.1 terminal system
- Cable Range: 8 AWG to 3/0 conductors
- Compatibility: 3VA41 and 3VA51 series circuit breakers (125A)
- Configuration: 3 units (3 single lugs, 1 barrel)
- Article Number: 3VA9133-0JB11
- Net Weight: 0.063 kg
- Packaging Dimensions: 100.00 x 150.00 x 22.00 mm
- Country of Origin: China
- EAN: 4042949008255
Applications
- Medium-capacity power distribution systems with 3VA41/3VA51 circuit breakers
- Industrial electrical installations requiring reliable wire connections
- Commercial power distribution panels with 125A capacity requirements
- Manufacturing facilities with diverse electrical distribution needs
- Switchgear applications requiring aluminum conductor terminations
Installation Features
- Field Installable: Easy installation without special tools or equipment
- Aluminum Construction: Durable aluminum lugs for reliable electrical connections
- Single Conductor Design: Individual lugs for flexible wiring configurations
- Professional Grade: Engineered for industrial and commercial applications
Compliance & Certifications
- RoHS Compliance: Since January 1, 2016
- WEEE Directive: Subject to take-back obligations
- REACH Regulation: Monitored according to current requirements
- Export Control: AL: N / ECCN: 9N9999

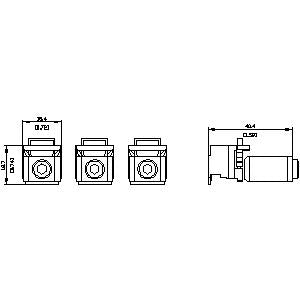

Download existing graphical data for this product:
Additional Information
| Part Width | 100 mmmm |
| Part Height | 150 mmmm |
| Part Depth | 22 mmmm |
| Weight | 63 gg |
| Country of Origin | India |
Technical Documentation & Downloads
Videos & Interactive Media
Product Media
Add Siemens videos or media manifest entries to showcase this product.

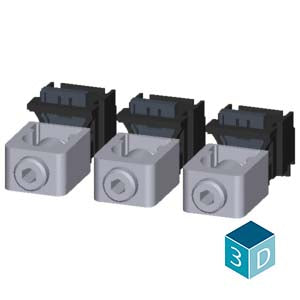

Interactive 3D CAD Model
