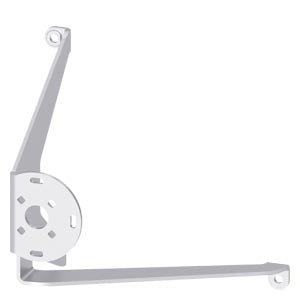

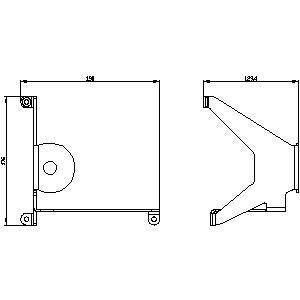

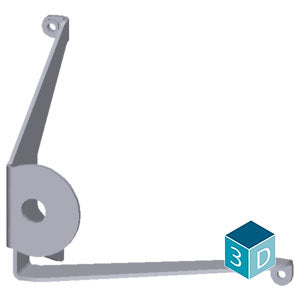

Siemens Retaining bracket for 3VA15/25 1000 Part number 3VA9687-0GA80

Product Overview

The Siemens 3VA9687-0GA80 is a specialized retaining bracket designed as an essential accessory for 3VA15/25/26 series molded case circuit breakers rated at 1000A. This precision-engineered mounting component provides secure mechanical support for manual operating mechanisms, enabling reliable installation and operation of front operating mechanisms, door coupling systems, and side rotary operating mechanisms. The bracket ensures proper alignment and mechanical stability for various operator configurations in demanding industrial electrical installations.

Key Features

• Manual Operating Mechanism Support: Specifically designed to support front operating mechanisms, door coupling, and side rotary operating mechanisms
• High Current Compatibility: Engineered for 3VA15/25/26 series circuit breakers rated at 1000A
• Versatile Mounting Options: Enables installation of front, door, and side panel rotary operating mechanisms
• Robust Construction: 0.569 kg weight ensures substantial mechanical support and durability
• Professional Installation: Facilitates secure mounting of various operator types with proper mechanical alignment
• System Integration: Essential component for complete manual operating mechanism installations
• Chinese Manufacturing: Quality construction with consistent performance specifications for industrial applications

Technical Specifications

• Product Type: Retaining bracket for manual operating mechanisms
• Compatibility: 3VA15/25/26 series molded case circuit breakers (1000A)
• Application Range: Front, door coupling, and side rotary operating mechanisms
• Net Weight: 0.569 kg
• Packaging Dimensions: 190.00 x 280.00 x 205.00 mm
• Packaging Quantity: 1 piece
• Country of Origin: China
• EAN: 4042949018155
• UPC: Not available

Applications

This retaining bracket is particularly suitable for:

• Industrial electrical installations requiring manual circuit breaker operation
• Control panels with front-mounted operating mechanisms
• Electrical enclosures requiring door-coupling rotary operators
• Side-wall mounted operator installations in switchgear
• Motor control centers with manual circuit breaker operators
• Industrial control panels requiring emergency stop functionality
• Manufacturing facility electrical systems with operator accessibility requirements
• Power distribution panels requiring manual override capabilities
• Process control installations with local operator access
• Building electrical systems requiring secure operator mounting

System Compatibility

The retaining bracket supports various operating mechanism configurations:

• Front Operating Mechanisms: Direct panel-mounted operators for easy access
• Door Coupling Systems: Through-door operation with proper mechanical coupling
• Side Rotary Operating Mechanisms: Side-mounted operators for space-constrained installations
• Standard and Emergency Stop Versions: Compatible with both standard and emergency stop operator types
• Lighting Kit Integration: Supports optional lighting kits for enhanced visibility
• Locking Options: Accommodates various locking and interlocking mechanisms

Compliance & Certifications

• RoHS Compliance: Compliant since June 1, 2012
• REACH Regulation: No current information on SVHC substances from supply chain
• Export Control: AL: N / ECCN: EAR99
• Product Class: B - Return restricted, please contact your Siemens partner/contact

Product Classification

• eClass: 27-37-13-92 (versions 12, 14), 27-37-92-01 (versions 6-9.1)
• ETIM: EC002498 (versions 7-9)
• UNSPSC: 39-12-11-03
• Product Group: 5376
• Group Code: P360
