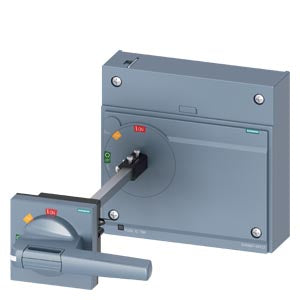

Siemens Door mounted rotary operator, door interlocking, 24VDC Part number 3VA9687-0FK23

Product Overview

The Siemens 3VA9687-0FK23 is a premium door-mounted rotary operator designed as a comprehensive operating mechanism for 3VA15 and 3VA25/26 series molded case circuit breakers. This professional-grade operator features standard IEC IP65 protection rating, integrated door interlock safety system, and 24V DC lighting kit for enhanced visibility and operational safety. The robust construction and advanced safety features make it ideal for demanding industrial applications where reliable through-door operation, environmental protection, and enhanced visibility are essential requirements.

Key Features

• IP65 Protection Rating: Superior environmental protection against dust ingress and water jets for harsh industrial conditions
• Integrated Door Interlock: Built-in safety mechanism prevents operation when door is open, ensuring operator safety and system integrity
• 24V DC Lighting Kit: Integrated illumination system provides clear visual indication of switch position in all lighting conditions
• Door-Coupling Operation: Enables safe and convenient circuit breaker operation through enclosure doors without opening the panel
• Standard IEC Compliance: Meets international electrical standards for industrial switching applications
• Robust German Engineering: Quality construction from Germany ensuring long-term reliability and performance
• Heavy-Duty Construction: 3.861 kg weight indicates substantial build quality for industrial environments

Technical Specifications

• Product Type: Door-mounted rotary operator with lighting kit
• Protection Rating: IEC IP65 (dust-tight and water jet protection)

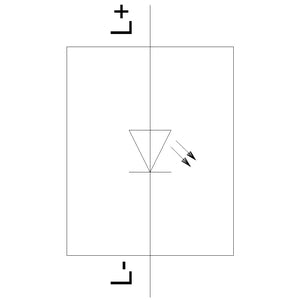

• Lighting System: 24V DC integrated lighting kit
• Safety Features: Door interlock mechanism
• Compatibility: 3VA15 and 3VA25/26 series molded case circuit breakers
• Net Weight: 3.861 kg
• Packaging Dimensions: 192.00 x 352.00 x 122.00 mm
• Packaging Quantity: 1 piece
• Country of Origin: Germany
• EAN: 4042949018728
• UPC: Not available

Applications

This door-mounted rotary operator is particularly suitable for:

• Industrial control panels requiring through-door circuit breaker operation
• Electrical enclosures in harsh environments requiring IP65 protection
• Manufacturing facilities with stringent safety requirements
• Process control installations requiring visual switch position indication
• Motor control centers with operator accessibility through doors
• Power distribution panels in outdoor or wet environments
• Chemical and petrochemical facilities requiring sealed operator mechanisms
• Food and beverage industry electrical installations
• Marine and offshore electrical systems
• Mining and heavy industry applications requiring robust environmental protection

Safety and Environmental Protection

The IP65 protection rating ensures:

• Complete dust protection: Prevents ingress of dust and particulates
• Water jet protection: Withstands water jets from any direction
• Door interlock safety: Prevents accidental operation when door is open
• Enhanced visibility: 24V DC lighting provides clear position indication
• Operational safety: Through-door operation eliminates need to open panels during switching

System Integration

The door-mounted operator integrates seamlessly with:

• 3VA15 Series: Medium-voltage molded case circuit breakers
• 3VA25/26 Series: High-capacity industrial circuit breakers
• Control Systems: Compatible with various industrial control architectures
• Safety Systems: Integrates with door interlock and safety circuits
• Lighting Systems: 24V DC power supply integration

Compliance & Certifications

• RoHS Compliance: Compliant since January 24, 2017
• WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
• REACH Regulation: No current information on SVHC substances from supply chain
• IEC Standards: Complies with international electrical standards
• Export Control: AL: N / ECCN: N
• Product Class: B - Return restricted, please contact your Siemens partner/contact

Product Classification

• eClass: 27-37-13-92 (versions 12, 14), 27-37-92-01 (versions 6-9.1)
• ETIM: EC002498 (versions 7-9)
• UNSPSC: 39-12-11-03
• Product Group: 5376
• Group Code: P360
