Siemens Wire connector for 3VA5 250, 6AWG Part number 3VA9233-0JB12

Product Overview

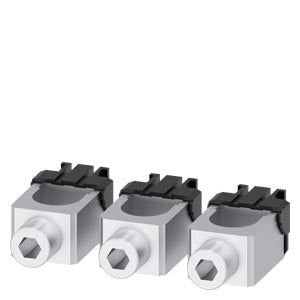

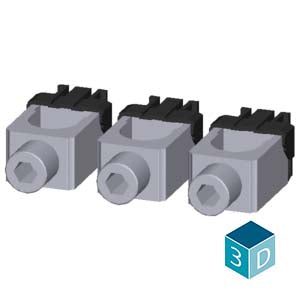

The Siemens 3VA9233-0JB12 is a professional wire connector set designed as connection technology for 3VA52 series molded case circuit breakers at 250A. This TA1.4 type connector features 3-piece aluminum body construction with 1-conductor lug terminals, supporting wire sizes from 6 AWG to 350 kcmil for reliable electrical connections. The Indian-manufactured connector set ensures secure and efficient power distribution connections in industrial and commercial electrical applications.

Key Features

• TA1.4 Wire Connector Type: Professional-grade connection technology for reliable electrical connectivity
• Wide Wire Range: Accommodates conductors from 6 AWG to 350 kcmil for versatile installation options
• 3-Piece Aluminum Construction: Durable aluminum body design ensures long-term reliability and corrosion resistance
• 1-Conductor Design: Single conductor per terminal for optimized connection security
• 3VA52 Compatibility: Specifically designed for 3-pole 3VA52 series circuit breakers at 250A
• 3-Unit Set: Complete connector kit for three-phase electrical installations
• Compact Design: 0.87" length x 1.14" width for space-efficient installation

Technical Specifications

• Product Type: Wire connector TA1.4 (3-unit set)
• Conductor Range: 6 AWG to 350 kcmil
• Construction: 3-piece aluminum body
• Configuration: 1-conductor lug terminal
• Compatibility: 3VA52 series molded case circuit breakers (250A, 3-pole)

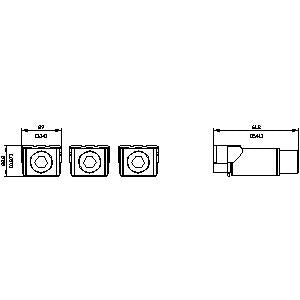

• Dimensions: 0.87" length x 1.14" width
• Net Weight: 0.135 kg
• Packaging Dimensions: 120.00 x 170.00 x 30.00 mm
• Country of Origin: India
• EAN: 4042949016397
• UPC: 804766325687

Applications

• Industrial electrical installations with 3VA52 circuit breakers
• Commercial building power distribution systems
• Manufacturing facilities requiring reliable electrical connections
• Power distribution panels with 250A circuit breaker requirements
• Electrical switchgear installations requiring secure wire terminations
• Motor control centers with high-current applications
• Infrastructure projects requiring robust electrical connections
• Building electrical systems with aluminum/copper conductor compatibility
• Process control installations requiring professional-grade connections
• Critical power applications requiring reliable terminations

Connection Technology Benefits

• Secure Termination: Professional lug terminal design ensures reliable electrical connections
• Material Compatibility: Supports both aluminum and copper conductors
• Current Capacity: Designed for high-current applications up to 250A
• Installation Efficiency: 3-piece design facilitates straightforward installation procedures
• Electrical Performance: Optimized contact design minimizes connection resistance
• Maintenance Access: Design allows for inspection and maintenance of connections

System Integration

• 3VA52 Series: Compatible with 250A three-pole molded case circuit breakers
• Connection Technology: Part of comprehensive 3VA connection system
• Conductor Systems: Integrates with various cable and conductor configurations
• Installation Standards: Meets professional electrical installation requirements

Installation Features

• Wire Size Flexibility: Accommodates wide range of conductor sizes for design flexibility
• Professional Installation: Designed for electrical contractor and technician use
• Quality Construction: Aluminum body construction ensures durability and performance
• Standard Compatibility: Integrates with standard electrical installation practices

Compliance & Certifications

• RoHS Compliance: Compliant since January 1, 2016
• WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
• REACH Regulation: No current information on SVHC substances from supply chain
• Export Control: AL: N / ECCN: 9N9999
• Product Class: B - Return restricted, please contact your Siemens partner/contact

Product Classification

• eClass: 27-37-13-92 (versions 12, 14), 27-37-92-01 (versions 6-9.1)
• ETIM: EC002498 (versions 7-9)
• Product Group: 5386
• Group Code: P360
