Siemens Door mounted rotary operator, door interlock, 24VDC Part number 3VA9267-0FK23

Product Overview

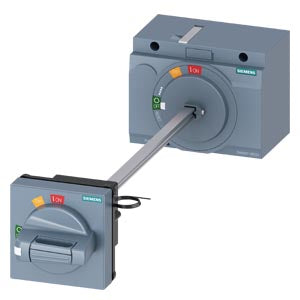

The Siemens 3VA9267-0FK23 is a door-mounted rotary operator for 3VA20/21/22 series molded case circuit breakers. This German-engineered operator features IEC IP65 protection, integrated door interlock, and 24V DC lighting kit for enhanced visibility and safety. Designed for demanding industrial applications requiring reliable through-door operation with optimal switch position indication in all environmental conditions.

Key Features

• IP65 Protection Rating: Complete dust and water jet protection for harsh environments
• Door Interlock Safety: Prevents operation when door is open for enhanced safety
• 24V DC Lighting Kit: Clear switch position indication in all lighting conditions, even when heavily soiled
• Door-Coupling Operation: Safe circuit breaker operation through enclosure doors
• IEC Standard Compliance: Meets international electrical and safety standards
• German Engineering: Quality construction ensuring long-term reliability

Technical Specifications

• Product Type: Door-mounted rotary operator with 24V DC lighting kit
• Protection Rating: IEC IP65 (dust-tight and water jet protection)
• Compatibility: 3VA20/21/22 series molded case circuit breakers (100A/160A/250A)
• Net Weight: 0.649 kg
• Packaging Dimensions: 110.00 x 115.00 x 450.00 mm
• Country of Origin: Germany
• EAN: 4042949011743
• UPC: 804766448669

Applications

• Industrial control panels requiring through-door operation with visibility
• Electrical enclosures in harsh environments needing IP65 protection
• Manufacturing facilities with safety and visibility requirements
• Process control installations requiring visual switch indication
• Motor control centers with door-mounted operator access
• Power distribution panels in challenging lighting conditions
• Chemical and petrochemical facilities requiring sealed, illuminated operation
• Marine and offshore electrical systems requiring robust protection

System Integration

• 3VA20/21/22 Series: Compatible with 100A/160A/250A circuit breakers
• Safety Systems: Integrates with door interlock and safety circuits
• Lighting Systems: 24V DC power supply integration
• Control Systems: Compatible with industrial control architectures

Safety and Lighting Benefits

• Environmental Protection: IP65 rating against dust and water ingress
• Enhanced Visibility: 24V DC illumination ensures clear position indication
• Operational Safety: Door interlock prevents unsafe operation
• Maintenance Support: Improved visibility during inspection procedures

Compliance & Certifications

• RoHS Compliance: Compliant since June 1, 2012
• WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
• REACH Regulation: No current information on SVHC substances from supply chain
• Export Control: AL: N / ECCN: N
• Product Class: B - Return restricted, please contact your Siemens partner/contact

Product Classification

• eClass: 27-37-13-92 (versions 12, 14), 27-37-92-01 (versions 6-9.1)
• ETIM: EC002498 (versions 7-9)
• UNSPSC: 39-12-11-03
• Product Group: 5376
