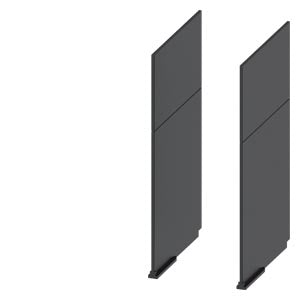

Siemens Phase barriers, 2 piece for 3VA15/25 1000 Part number 3VA9602-0WA00

Product Overview

The Siemens 3VA9602-0WA00 is a specialized set of phase barriers designed as essential safety accessories for 3VA15/25/26 series molded case circuit breakers. This 2-unit barrier system provides critical electrical isolation and phase separation, enhancing personnel safety and preventing accidental contact between live conductors. The lightweight yet robust Mexican-manufactured construction ensures reliable protection while maintaining proper electrical clearances and meeting all installation safety requirements in industrial and commercial electrical applications.

Key Features

• Electrical Phase Isolation: Provides critical separation between phases to prevent accidental contact and short circuits
• 2-Unit Configuration: Complete barrier set for comprehensive phase separation in three-phase electrical systems
• Safety Enhancement: Protects personnel from accidental contact with live electrical components during maintenance
• Universal Compatibility: Compatible with 3VA15/25/26 series molded case circuit breakers
• Lightweight Design: 0.163 kg weight for easy installation without adding significant mechanical load
• Professional Standards: Meets installation safety requirements and electrical clearance specifications
• Connection Technology Integration: Part of comprehensive 3VA connection technology system

Technical Specifications

• Product Type: Phase barriers (2-unit set)
• Configuration: 2 barriers for phase separation
• Compatibility: 3VA15/25/26 series molded case circuit breakers
• Application: Electrical phase isolation and safety protection
• Net Weight: 0.163 kg
• Packaging Dimensions: 104.00 x 117.00 x 19.00 mm
• Packaging Quantity: 1 set (2 units)
• Country of Origin: Mexico
• EAN: 4042949018568
• UPC: Not available

Applications

This phase barrier set is particularly suitable for:

• Industrial electrical installations requiring phase separation and safety protection
• Manufacturing facilities with 3VA15/25/26 series circuit breaker systems
• Power distribution panels requiring enhanced electrical safety measures
• Electrical switchgear installations with personnel access requirements
• Motor control centers requiring phase isolation during maintenance
• Commercial building electrical systems with safety compliance needs
• Process control installations requiring electrical hazard mitigation
• Infrastructure projects requiring enhanced electrical safety standards
• Educational and training facilities with electrical equipment access
• Maintenance environments requiring protection from live conductors

Safety and Protection Benefits

The phase barriers provide essential safety features including:

• Personnel Protection: Prevents accidental contact with live electrical conductors
• Phase Separation: Maintains proper electrical isolation between phases
• Arc Flash Mitigation: Reduces risk of phase-to-phase faults and arc flash incidents
• Maintenance Safety: Enhances safety during circuit breaker maintenance and inspection
• Compliance Support: Helps meet electrical safety codes and installation standards
• Visual Barrier: Provides clear visual indication of electrical hazard areas

System Integration

The phase barriers integrate seamlessly with:

• 3VA15 Series: High-performance molded case circuit breakers
• 3VA25/26 Series: High-capacity industrial circuit breakers
• Connection Technology: Part of comprehensive 3VA connection system
• Safety Systems: Integrates with overall electrical safety protocols
• Maintenance Procedures: Supports safe maintenance and inspection practices

Installation and Configuration

Key installation characteristics include:

• Easy Installation: Lightweight design facilitates quick and simple installation
• Proper Clearances: Designed to maintain required electrical clearances and spacing
• Universal Fit: Compatible across 3VA15/25/26 series circuit breakers
• Professional Standards: Meets electrical installation codes and safety requirements
• Maintenance Access: Allows for safe maintenance while providing necessary protection

Connection Technology Benefits

As part of the 3VA connection technology system:

• Comprehensive Safety: Integrates with other safety components for complete protection
• Installation Flexibility: Supports various installation configurations and requirements
• Code Compliance: Helps ensure compliance with electrical safety standards
• System Reliability: Enhances overall electrical system safety and reliability
• Professional Installation: Supports professional electrical installation practices

Compliance & Certifications

• RoHS Compliance: Compliant since January 1, 2016
• REACH Regulation: No current information on SVHC substances from supply chain
• Export Control: AL: N / ECCN: EAR99
• Product Class: B - Return restricted, please contact your Siemens partner/contact

Product Classification

• eClass: 27-37-13-92 (versions 12, 14), 27-37-92-01 (versions 6-9.1)
• ETIM: EC002498 (versions 7-9)
• Product Group: 5376
• Group Code: P360
