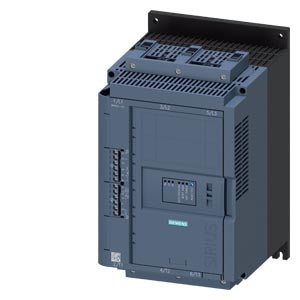

Siemens Sirius soft starter, screw terminals, 200 - 480V, 47A Part number 3RW5224-1AC04

Product Overview

SIRIUS soft starter 200-480 V 47 A, 24 V AC/DC Screw terminals Analog output. This advanced soft starter provides comprehensive motor control with analog output functionality for enhanced monitoring and control capabilities, designed to deliver smooth motor acceleration and deceleration while offering precise feedback for industrial automation systems.

Technical Specifications

Article Number: 3RW5224-1AC04

Electrical Characteristics:

• Current rating: 47 A
• Power rating: 22 kW at 400 V
• Supply voltage: 200-480 V AC
• Control voltage: 24 V AC/DC
• Terminal type: Screw terminals
• Phases: Three phase
• Poles: 3 pole

Advanced Features:

• Analog output for monitoring and control
• Soft start capability for smooth motor acceleration
• Overcurrent protection
• Thermal overload protection
• Reduced starting currents
• Mechanical stress reduction
• Enhanced monitoring capabilities

Physical Properties:

• Net weight: 5.200 kg
• Packaging dimensions: 300.00 x 390.00 x 320.00 mm
• Packaging quantity: 1 piece
• Country of origin: Czech Republic

Product Identifiers:

• EAN: 4047621036724
• UPC: Not available

Compliance & Environmental:

• RoHS Compliance: Since 15.02.2018
• WEEE Take-Back Obligation: Yes
• REACH Regulation: Contains lead, lead monoxide, 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol, and dibutylbis(pentane-2,4-dionato-O,O')tin in concentrations higher than 0.1% weight by weight. Based on current information, these substances do not pose risk when used as intended.

Classifications:

• eClass: 27-37-09-07
• ETIM: EC000640
• UNSPSC: 39-12-15-21

Download existing graphical data for this product:

• Technical Datasheet (PDF)
• 3D CAD Models
• CAD Drawings (DWG/DXF)
• Product Details - Industry Mall
