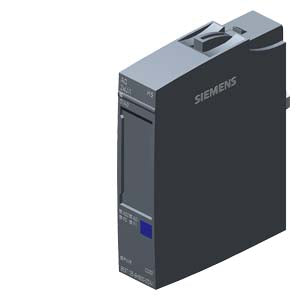

Siemens Simatic ET 200SP Analog output module, 16 bit Part number 6ES7135-6HB00-0DA1

Product Overview

SIMATIC ET 200SP analog output module featuring 2 channels with universal voltage/current output (AQ 2x U/I) in High Speed configuration. This high-performance module delivers 16-bit resolution with ±0.2% accuracy and enhanced speed capabilities for demanding real-time control applications. Compatible with BU type A0 and A1 base units with color code CC00 for easy identification, the module includes comprehensive channel diagnostics and seamless integration with SIMATIC distributed I/O systems for applications requiring fast analog signal processing.

Key Features & Specifications

• High-Speed Analog Outputs: 2 universal voltage/current outputs (AQ 2x U/I) with enhanced speed performance
• High Precision: 16-bit resolution with ±0.2% accuracy for precise analog signal control
• Output Modes: Supports both voltage (±10V, 0-10V) and current (±20mA, 0-20mA, 4-20mA) output ranges
• Base Unit Compatibility: Suitable for BU type A0 and A1 with color code CC00 identification
• Channel Diagnostics: Advanced channel-specific diagnostics with comprehensive monitoring capabilities
• Hot-Swappable: Module replacement during operation without system disruption

Technical Specifications

• Article Number: 6ES7135-6HB00-0DA1
• Configuration: AQ 2x U/I High Speed analog output module
• Resolution: 16-bit with ±0.2% accuracy

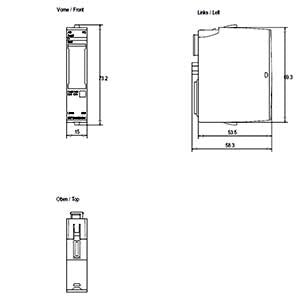

• Dimensions: 0.038 kg weight
• Packaging: 6.80 x 7.70 x 2.40 cm, EAN: 4025515082644
• System Compatibility: SIMATIC ET 200SP distributed I/O system with PROFINET/PROFIBUS integration
• Country of Origin: Germany

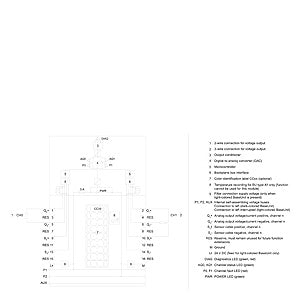

High-Speed Performance & Output Ranges

• Fast Response Time: Optimized for high-speed applications requiring rapid analog signal changes
• Voltage Output: ±10V, 0-10V with high precision and fast settling times
• Current Output: ±20mA, 0-20mA, 4-20mA with enhanced speed characteristics
• Signal Quality: Low noise, high stability analog outputs with minimal delay
• Load Characteristics: Optimized for various load impedances with fast response to control commands

Applications & Integration

• High-Speed Process Control: Rapid control of servo systems, high-speed valves, and precision actuators
• Motion Control: Fast analog control of servo drives and positioning systems
• Real-Time Manufacturing: High-speed control of production equipment requiring precise timing
• Quality Control: Fast-responding measurement and control systems for dynamic processes
• System Integration: Seamless integration with SIMATIC controllers via PROFINET/PROFIBUS communication protocols with optimized data exchange rates

Advanced Configuration & Diagnostics

• Engineering Tools: TIA Portal configurable with enhanced high-speed parameter settings
• Protocol Support: PROFIBUS and PROFINET with optimized communication for high-speed applications
• Channel Diagnostics: Individual channel monitoring with real-time performance analysis
• Preventive Maintenance: Advanced diagnostic features for predictive maintenance scheduling
• Performance Monitoring: Real-time monitoring of signal quality and response times

Compliance & Environmental

• Export Control: AL: N / ECCN: 9N9999
• RoHS Compliance: Since 31.03.2015
• WEEE Take-Back: Applicable
• Product Class: A - Standard stock item, returnable within guidelines

REACH Regulation Information

• Regulated Substances: Contains substances from the candidate list in concentrations higher than 0.1% w/w: Lead, Lead monoxide (lead oxide), and Silicic acid (lead salt)
• Risk Assessment: These substances do not pose risks when used as intended, including disposal
• Documentation: Refer to product documentation for additional details

Download existing graphical data for this product:

• Product Datasheet
• AQ 2xU/I HS Manual
• Product Support Page
