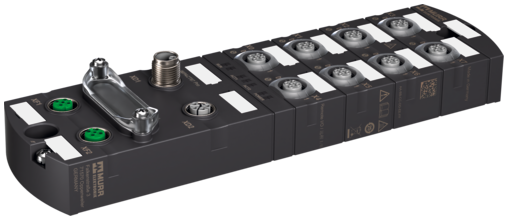

Murr Profinet compact module, M12, DIO8, IOL8, 5-pole

Product Overview

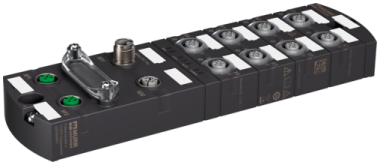

The Murrelektronik IMPACT67 Pro PN DIO8 IOL8 M12L 5P is a PROFINET-enabled compact I/O module with integrated IO-Link master functionality. This plastic-housed module combines digital inputs/outputs with eight multifunctional IO-Link master ports for decentralized automation applications, featuring 5-pole power connections for enhanced grounding capabilities.

Key Features

• PROFINET protocol with Ethernet 10/100 Mbit/s communication
• 8x multifunctional IO-Link Master ports (V1.1.3 compliance)
• Digital inputs/outputs with configurable pin functionality
• IIoT connectivity via OPC UA, JSON REST API, and MQTT protocols
• 5-pole L-coded power connections with grounding via cordset
• IP67 protection rating with compact plastic housing

Technical Specifications

• Model: IMPACT67 Pro PN DIO8 IOL8 M12L 5P
• Article Number: 54630

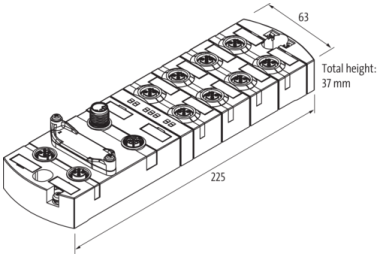

• Housing: Compact plastic, IP67 protection
• Fieldbus: PROFINET via 2x M12, 4-pole, D-coded
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C

Electrical Characteristics

• Supply Connection: 2x M12 Power, L-coded, 5-pole configuration
• Supply Voltage: 24V DC (EN 61131-2)
• Maximum Current: 2x 16 A per power connection
• Output Current: Max 2 A per pin, 4 A per port
• Power Management: Adjustable 0.5-2 A per pin
• Protection: Short-circuit and overload protected

IO-Link Master Features

• Ports: 8x M12, 5-pole, A-coded connections
• Classification: Class A/B with common ground
• Cycle Time: Minimum 400 μs synchronized operation
• Pin Functions: Configurable DI, DO, UA, IOL with supply switching
• Actuator Supply: Max 10 A Port X0-X7

Applications

• PROFINET-based industrial automation systems
• Decentralized I/O with IO-Link device integration
• Machine control systems with IIoT connectivity
• Process monitoring and diagnostic applications
• Applications requiring enhanced grounding via 5-pole power connections

Standards and Compliance

• IO-Link: V1.1.3 specification compliance
• Communication: PROFINET protocol standards
• Protection: IP67 environmental rating
• Supply: EN 61131-2 compliance
• Mounting: 2-hole screw mounting, compatible with MVK model range

Benefits

• Enhanced grounding capability with 5-pole power connection (4+FE)
• Manufacturer-independent IO-Link device compatibility
• Integrated energy monitoring for predictive maintenance
• Remote configuration via web interface
• Siemens S7-1200 PLC compatibility proven
