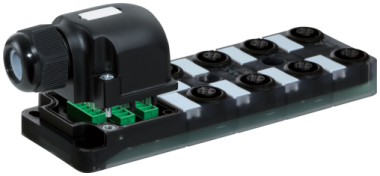

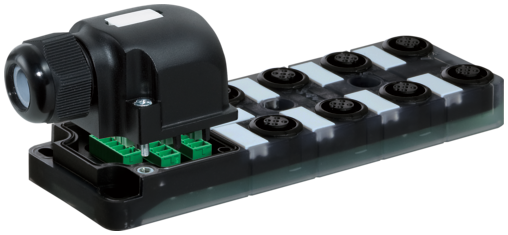

Murr Distribution block, spring, 8x M12, 5-pole cap, PNP
Murr Distribution block, spring, 8x M12, 5-pole cap, PNP

Murr Distribution block, spring, 8x M12, 5-pole cap, PNP

Vendor: Murrelektronik
SKU: 8000-88540-0000000
Availability: In stock (Purchase on demand)
Product type: Field Sensing & Switching
Please hurry! Only 65 left in stock
Description
Description
x
Specifications
Specifications
x
IP RatingIP65 / IP67
Tariff85369010
GTIN4048879053853
FlammabilityFlame retardant
Temperature: Operating / Dynamic-20°C to 70°C
Material: Housing / GripPlastic
Part Width (mm)50.2mm
Part Length (mm)150mm
Part Height (mm)17mm
Packaging Size1 pc(s)
Weight (g)210g
Conductor Cross-section1,5mm2
Connection TypeCap with 21 Poles (Type 1) / M12 Female with 5 Poles (Type 2)
Connection StyleSpring clamp terminals FK
Operating Voltage 24 V
Current Rating / Rated Current4 - 8 A
ColourBlack
Documents
Documents
x
Download Datasheet
