Murr Impact67 ProfiNet to IO-Link master module

Product Overview

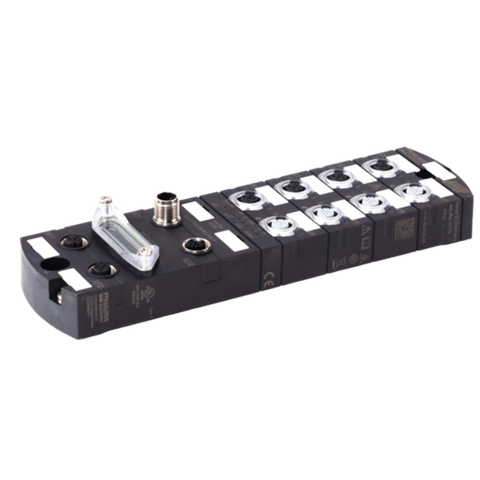

The Murrelektronik Impact67 PN DIO12 DIO4/IOL4 M12L 4P is a PROFINET-enabled compact I/O module featuring 12 digital I/O channels and 4 IO-Link master ports. This module combines standard digital inputs/outputs with IO-Link master functionality, supporting IRT (Isochronous Real-Time) communication for precise timing applications.

Key Features

• PROFINET protocol with IRT (Isochronous Real-Time) support
• 12 digital I/O channels (DIO12) with configurable inputs/outputs
• 4 IO-Link master ports (IOL4) with Class B functionality
• Ethernet 10/100 Mbit/s communication
• IP67 protection with fully potted housing
• Compatible with 3-wire sensors or mechanical switches

Technical Specifications

• Model: Impact67 PN DIO12 DIO4/IOL4 M12L 4P
• Article Number: 55152
• Protocol: PROFINET with IRT capability
• I/O Configuration: 12 digital I/O + 4 IO-Link master ports
• Operating Temperature: -25°C to +55°C
• Storage Temperature: -25°C to +70°C

Electrical Characteristics

• Actuator Supply: 24V DC (EN 61131-2), max 9 A
• Sensor Supply: 24V DC, max 1 A per IO-Link port
• Lamp Load: 10W capability
• IO-Link Transfer: 32 Bytes In/Out per IO-Link port
• Operating Modes: COM1, COM2, COM3 (automatic)

Connection Specifications

• Fieldbus: M12, D-coded for PROFINET communication
• Power Supply: M12 Power, 4-pole, L-coded, 2x max 16 A
• I/O Ports: M12, 5-pole, A-coded connections
• PROFINET Specification: V2.3, Conformance Class C (IRT)
• Addressing: DCP with Fast-Start-Up max 500 ms

IO-Link Features

• Port Class: Class B (not galvanically separated)
• Pin 2 Function: Input/Output (X0-X7), U-Actuator IO-Link Class B (X4-X7)
• Pin 4 Function: Input/Output (X0-X7), IO-Link Master (X4-X7)
• IO-Link Master: 4x Master ports with V1.1.2 specification
• Shared Device: Support for 2 controllers

Applications

• PROFINET automation systems requiring IRT timing
• Machine control with mixed digital I/O and IO-Link devices
• Industrial applications needing precise synchronization
• Process control systems with IO-Link sensor integration
• Applications requiring PROFINET Conformance Class C

Standards and Compliance

• PROFINET: V2.3 specification, Conformance Class C (IRT)
• Protection: IP67 environmental rating
• Supply: EN 61131-2 compliance

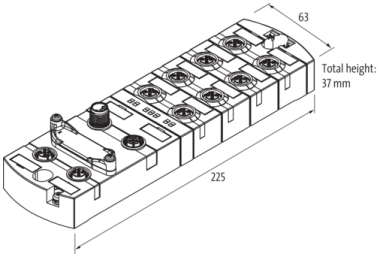

• Mounting: 2-hole screw mounting, MVK model range compatible
• PROFINET Netload Class: III

Benefits

• IRT support enables precise timing for motion control applications
• Mixed I/O configuration provides flexibility for diverse applications
• Individual channel diagnostics via LED and bus communication
• Shared device functionality supports multi-controller systems
• Fast startup capability reduces system commissioning time

Download existing graphical data for this product:

• Product Specification Sheet
