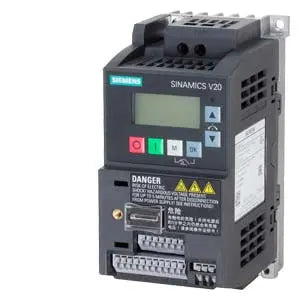

Siemens Sinamics V20 Inverter drive, 1-phase, 230V, 0.12kW

Product Overview

SINAMICS V20 single-phase variable frequency drive, 0.12 kW (0.16 HP), 200-240 V 1 AC input with 150% overload capability for 60 seconds. Features unfiltered design with 4 DI, 2 DO, 2 AI, 1 AO interface and USS/MODBUS RTU fieldbus communication. Article Number: 6SL3210-5BB11-2UV1.

Key Specifications

Electrical Ratings:

• Input voltage: 200-240 V 1 AC (-10%/+10% tolerance)
• Input frequency: 47-63 Hz
• Rated power: 0.12 kW (0.16 HP)
• Output current: 0.9 A rated
• Overload capacity: 150% for 60 seconds
• Output frequency range: 0-550 Hz

Control and Communication:

• Control method: Vector control with energy optimization
• Fieldbus: USS/MODBUS RTU communication
• Built-in Basic Operator Panel (BOP)
• RS-485 interface for system communication
• Parameter loader functionality

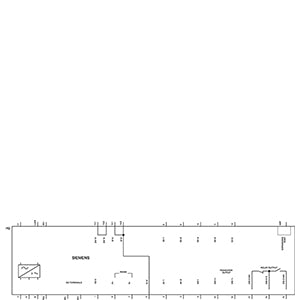

Input/Output Interface:

• 4 Digital Inputs (DI) for control signals
• 2 Digital Outputs (DO) for status indication
• 2 Analog Inputs (AI) for process values
• 1 Analog Output (AO) for signal transmission

Construction Features:

• Single-phase AC input to three-phase output conversion
• Unfiltered design for cost-effective installation
• Energy-optimized control with automatic flux reduction
• Integrated energy-saving functions
• ECO mode for V/f and V²/f control
• Wide operating temperature range -10°C to +60°C
• Advanced cooling design to prevent overheating

Physical Specifications

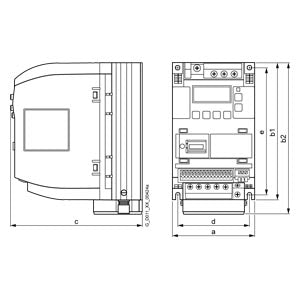

• Frame size: AA - 68 x 142 x 108 mm (W x H x D)
• Net weight: 0.600 kg
• Degree of protection: IP20/UL Open Type
• Natural cooling design
• Push-through and wall mounting options
• Side-by-side mounting capability

Product Identifiers

• EAN: 4042948669785
• UPC: 804766253263
• Country of origin: China

Compliance Information

• RoHS compliant since 05.07.2010
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Export Control: AL: N / ECCN: N

REACH Regulation Information There is currently no information on SVHC (Substances of Very High Concern) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation.

Download existing graphical data for this product:

Product Datasheet

Operating Instructions Manual

Product Support Page
