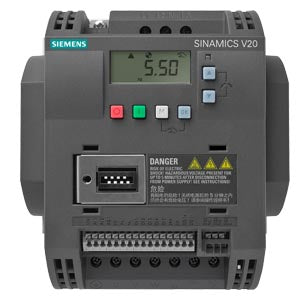

Siemens Sinamics V20 Basic converters, 3AC 400V, 0.37kW Part number 6SL3210-5BE13-7CV1

Product Overview

The Siemens SINAMICS V20 (SKU: 6SL3210-5BE13-7CV1) is a compact and reliable AC drive designed for three-phase motors operating at 380–480 V AC. With a rated power output of 0.37 kW, it offers simple, cost-effective variable-speed control for basic industrial applications. This version includes an integrated C3 EMC filter, built-in I/O connections, and is ideal for small machinery and general-purpose motion control systems.

Key Features

• Rated Power: 0.37 kW (three-phase, 380–480 V AC)
• Integrated EMC Filter: Class C3 for reduced interference
• Built-in I/O: 4 digital inputs, 2 digital outputs, 2 analog inputs, 1 analog output
• Compact Design: Space-saving for control panel integration
• Ease of Use: Simple commissioning with quick parameter setup
• Overload Capability: 150% for 60 seconds (typical V20 performance)
• Cooling: Intelligent fan control for extended lifetime

Technical Specifications

• Product Family: SINAMICS V20
• Article Number: 6SL3210-5BE13-7CV1
• Rated Voltage: 380–480 V AC (±10%)
• Rated Power: 0.37 kW
• Rated Frequency: 47–63 Hz
• EMC Filter: Integrated C3
• I/O Configuration: 4 × DI, 2 × DO, 2 × AI, 1 × AO
• Control Modes: V/f and FCC (Flux Current Control)
• Enclosure Protection: IP20
• Ambient Temperature: −10 °C to +50 °C (derating above 40 °C)
• Mounting: Wall or panel-mounted with integrated cooling
• Dimensions: Approx. 68 mm (W) × 173 mm (H) × 143 mm (D)
• Weight: ~1.1 kg
• Country of Origin: Germany

Compliance & Certifications

• Complies with Siemens quality and manufacturing standards
• Meets international EMC and electrical safety requirements
• RoHS-compliant and environmentally sustainable
• Tested for industrial environments with C3-class interference suppression

Applications

Ideal for small motor applications such as fans, pumps, conveyors, and packaging equipment. The SINAMICS V20 0.37 kW drive provides a cost-efficient, easy-to-use, and durable solution for OEM machinery, control systems, and general automation environments requiring reliable variable-speed operation.
