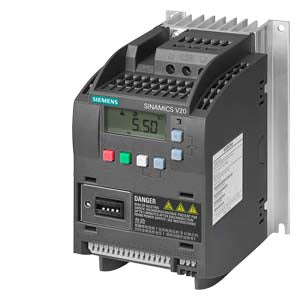

Siemens Sinamics V20 Inverter drive, 3-phase, 1.5kW

Product Overview

The SINAMICS V20 is a cost-effective, reliable, and easy-to-use variable frequency drive designed for basic applications where engineering, commissioning, and operating costs must be kept to a minimum. This compact 1.5 kW converter features advanced control technology optimized for energy efficiency and provides simple, intuitive operation for a wide range of motor control applications.

Key Features

Power and Performance

• Rated Power: 1.5 kW with 150% overload capability for 60 seconds
• Input Voltage: 380-480 V 3 AC (-15%/+10% tolerance)
• Frequency Range: 47-63 Hz input, up to 550 Hz output
• Output Current: 4.1 A rated
• Unfiltered design for cost-effective installation

Advanced Control Technology

• Energy-optimized control mode with automatic flux reduction
• Integrated energy-saving functions for reduced power consumption
• Real-time energy consumption display
• Optimized motor magnetic flux adaptation to operating conditions
• Built-in protection functions for reliable operation

Input/Output Interface

• 4 Digital Inputs (DI) for control signals
• 2 Digital Outputs (DO) for status indication
• 2 Analog Inputs (AI) for process values
• 1 Analog Output (AO) for signal transmission
• Comprehensive I/O capabilities for flexible system integration

Communication and Connectivity

• USS/MODBUS RTU fieldbus communication
• Built-in Basic Operator Panel (BOP) for local control
• RS-485 interface for system communication
• Parameter loader functionality for easy configuration transfer
• Wireless commissioning capability with optional Smart Access module

Technical Specifications

Physical Characteristics

• Size: Frame A - 90 x 166 x 145.5 mm (W x H x D)
• Net Weight: 0.990 kg
• Degree of Protection: IP20/UL Open Type
• Compact design for space-saving installation
• Forced cooling with integrated fan

Electrical Specifications

• Input Phases: 3-phase AC
• Output Phases: 3-phase variable frequency
• Maximum Output at Linear Load: 1.5 kW
• Maximum Output at Quadratic Load: 1.5 kW
• Control Method: Vector control with energy optimization
• Switching Frequency: Variable, optimized for efficiency

Installation and Mounting

• Panel mounting design for easy integration
• Compact footprint suitable for confined spaces
• Heat dissipation optimized for reliable operation
• Quick and simple wiring connections
• Tool-free parameter setting capabilities

Compliance and Standards

• RoHS compliant since 05.07.2010
• UL listed for North American applications
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Country of Origin: China
• Export Control: AL: N / ECCN: N
• EAN: 6940408102736
• UPC: 887621056216

Applications The SINAMICS V20 is ideal for:

• Pumps and fans in HVAC systems
• Conveyor systems and material handling
• Simple machine automation
• Process control applications
• Energy-efficient motor control
• Retrofit applications replacing older drives
• Basic speed control requirements
• Cost-sensitive automation projects

Energy Efficiency Features

• Automatic energy optimization algorithms
• Real-time energy consumption monitoring
• Flux reduction technology for improved efficiency
• Eco-friendly operation modes
• Reduced system operating costs
• Compliance with energy efficiency standards

Installation and Commissioning Benefits

• Quick commissioning with pre-configured parameters
• Parameter cloning via parameter loader
• Intuitive setup procedures
• Comprehensive diagnostic capabilities
• Reduced engineering time and costs
• User-friendly operation interface
