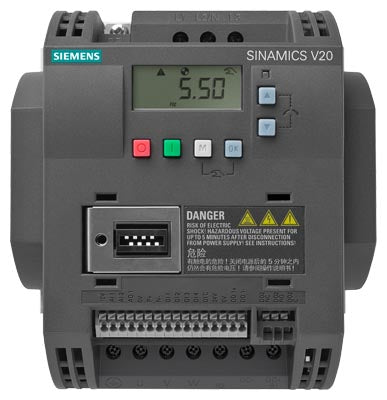

Siemens Sinamics V20 Drive, 380-480V, 3AC, 0.37kW Part number 6SL3210-5BE13-7UV1

Product Overview

The Siemens 6SL3210-5BE13-7UV1 is a SINAMICS V20 compact AC drive designed for reliable and cost-efficient motor control in industrial and commercial applications. It supports a three-phase supply voltage of 380 – 480 V AC and delivers a rated output power of 0.37 kW (0.5 HP). Compact and easy to commission, it offers robust performance, integrated I/O, and high overload capability for various drive tasks.

Key Features

• Compact variable frequency drive for three-phase 380 – 480 V AC supply
• Rated output power 0.37 kW (0.5 HP) with output current ~1.3 A
• High overload capability: 150 % of rated current for 60 seconds (HO mode)
• Built-in I/O interface with 4 digital inputs, 2 digital outputs, 2 analog inputs and 1 analog output
• Integrated fieldbus support for USS and Modbus RTU communication
• Built-in braking chopper and DC link connection points
• Quick commissioning via Basic Operator Panel (BOP) or PC tool
• Compact design for panel and wall mounting, with user-friendly wiring access

Technical Specifications

• Product Series: SINAMICS V20 Compact Drives
• Article Number: 6SL3210-5BE13-7UV1
• Input Voltage: 3 AC, 380 – 480 V (-15 % / +10 %) at 47 – 63 Hz
• Rated Output Power: 0.37 kW (0.5 HP)
• Rated Output Current: approx. 1.3 A (at 480 V)
• Overload Capability: 150 % for 60 s (HO mode) / 110 % for 60 s (LO mode)
• Protection Class: IP20 / UL Open Type
• Cooling Method: Forced air cooling (integrated fan)
• Ambient Temperature (Operation): –10 °C to +60 °C
• Dimensions (W × H × D): 90 mm × 150 mm × 145.5 mm (Frame Size A)
• Net Weight: approx. 0.9 kg
• Mounting Altitude: up to 2 000 m without derating

Compliance & Certifications

• Complies with IEC/EN 61800-5-1 and IEC/EN 61800-3 standards
• UL and cUL listed to UL 508C standards
• CE marked and RoHS compliant
• Designed and tested under Siemens industrial automation quality standards

Applications

The 6SL3210-5BE13-7UV1 SINAMICS V20 drive is ideal for motor control in machines, pumps, fans, compressors, conveyors and HVAC systems. Its compact size, integrated control features and simple commissioning make it a reliable solution for OEM equipment builders and industrial automation installations requiring basic speed and torque control.
